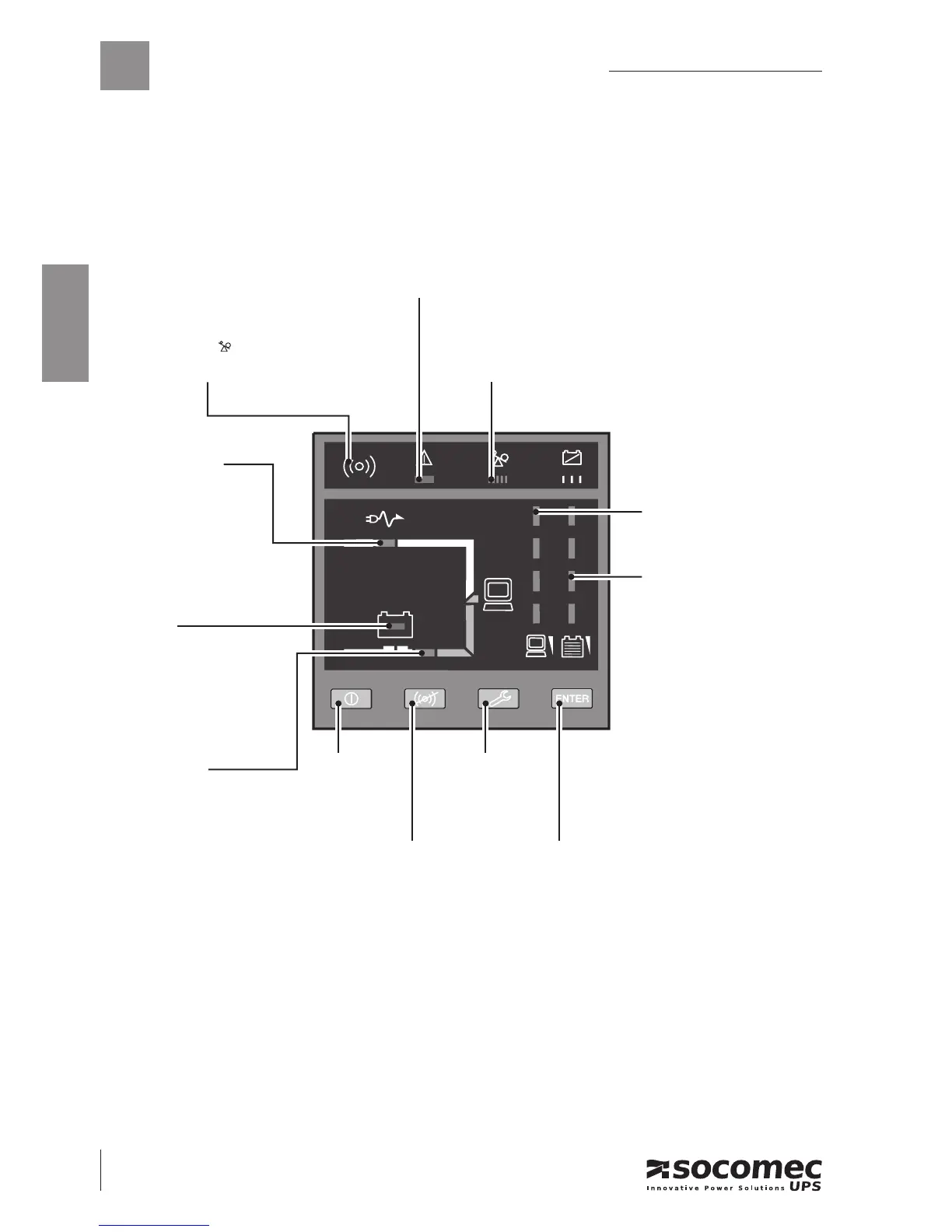

FRONT VIEW
5
Acoustic alarm.
Intermittent every 4 seconds: •
BATTERY MODE.
Intermittent every second: •
battery low.
Intermittent every second with •
led ashing: overload.
Continuous: UPS failure.•
Alarm LED.
Flashing: alarm present.•
Lit: fault.•
Overload LED.
Flashing: overload.
ON/OFF
switch.
Press for 3 seconds.
Buzzer silence and
self test mode button.
Button to conrm.
Conguration
mode button.
Operating mode LED.
LED green lit: •
NORMAL MODE (mains OK).
LED green ashing: •
NORMAL MODE (AVR active).
LED yellow ashing: •
wide range input mode.
Battery LED.
Flashing: battery disconnected.•
Lit: battery needs to be replaced.•
Battery Mode LED.
Low ashing: BATTERY MODE •
(mains absent or abnormal).
Fast ashing: battery low.•
Load LED bar.
Load level (power %): 25% steps.•
Battery level LED bar.
Battery level (capacity %): 25% steps.•
