CONNECTIONS
Cables with the appropriate cross-section and conforming to the safety standards in force should
be used for connection to the mains and connection of the loads.
USE OF THE BATTERY EXPANSION (optional on models 1500-2000-3000 VA).
Back-up extension units are available on some models when long-life battery operation is required. By combining
the UPS with one or maximum two battery expansion units, back-up times of up to 60 minutes may be obtained.
DANGER!
Make sure that the safety switch on the battery expansion unit is in the “OFF” position during the
connection procedure!
Place the battery expansion unit beside the UPS on the side with no air vents. Connect the battery expansion unit
to the UPS using the special cable supplied.
Once connection has been completed, congure the back-up expansion unit using the special menu as described
in chapter 9.

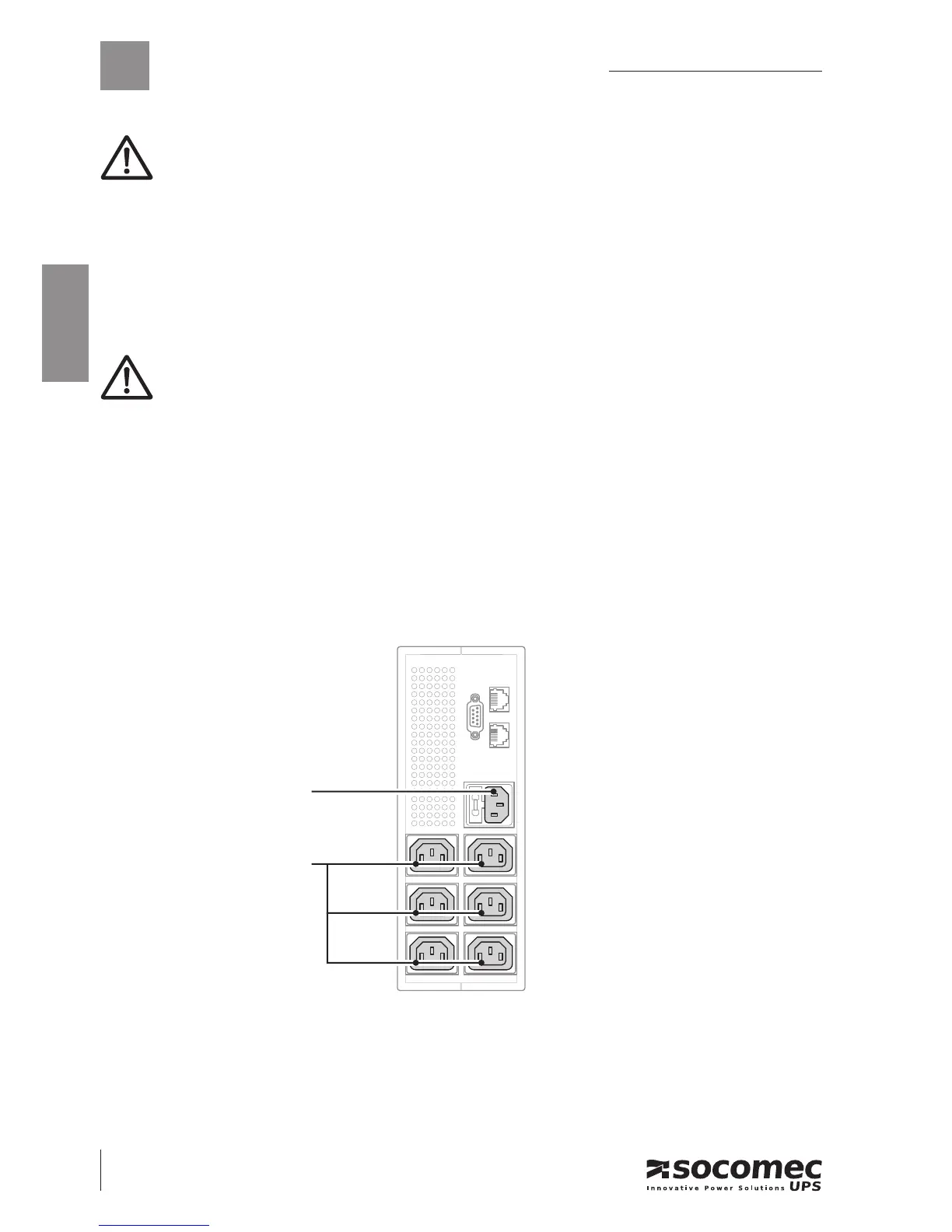

OUT 230 V~
6 x IEC320
IN 230 V~
Use the server’s supply
cord (IEC 320)
1000 VA
