ADJUSTMENT AND MAINTENANCE OF THE CHASSIS
Keep go-kart in original configuration
Use spare parts of Sodikart origin
This document can not be reproduced or released without the Sodikart authorization.MAN.GT4.EN.01
GT4
Step 2

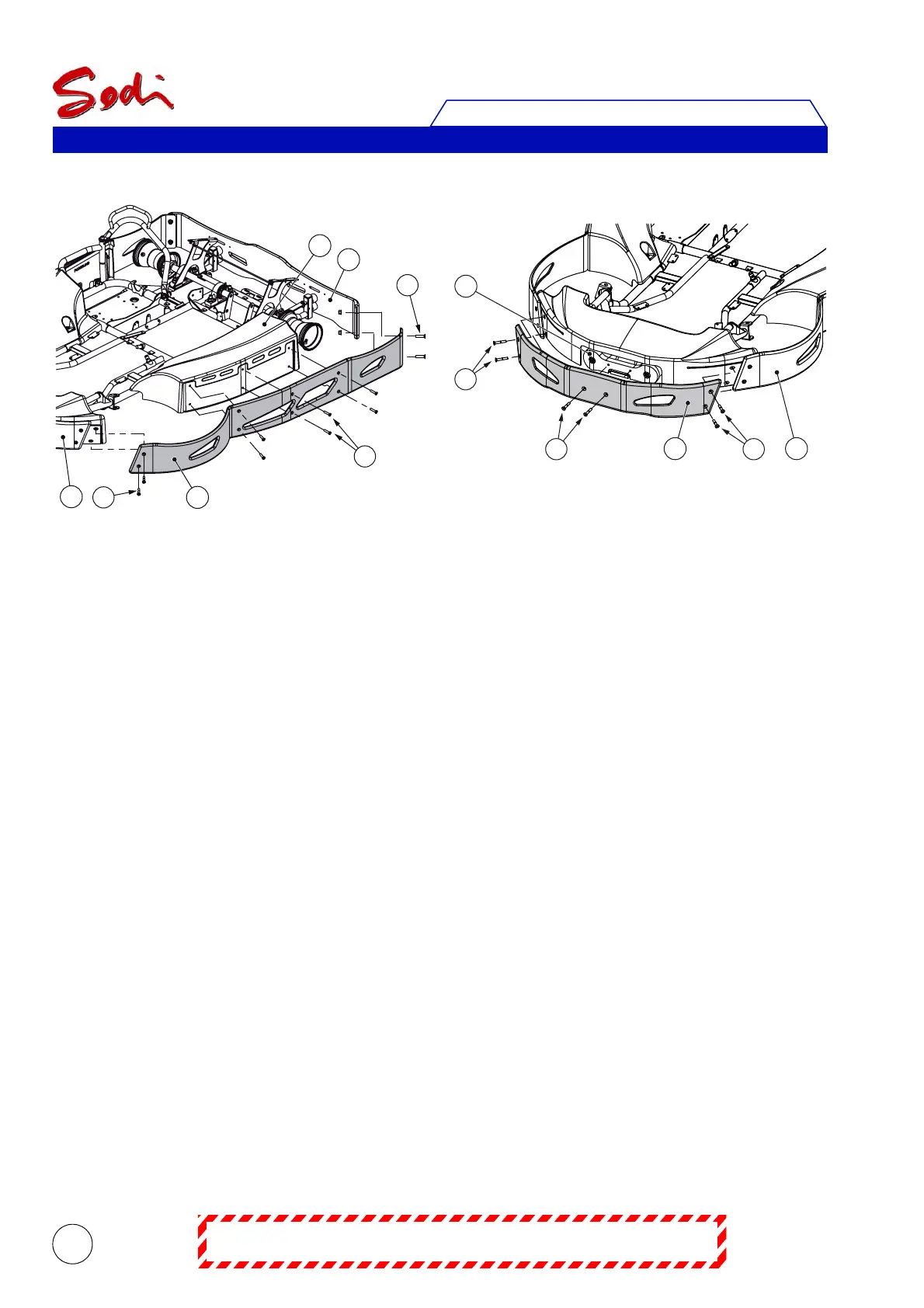

Legend
1 Rear bumper
4 Side protection
5Side pod
6 Screw
7 Screw
8Spoiler
9 Screw
• Place the side protection (4) on the side pod (5) and
the rear bumper (1).
•
Secure the side protection (4) to the side pod (5)
using the six screws (6) and the mounting flange
plates. Secure it to the rear bumper (1) using the
two screws (7). Secure the front part of the side
protection (4) to the spoiler (8) using the screws (9).
6
7
9
5
1
8
4
Step 3
Legend
1 Front protection
2Screw
3 Support
4 Side protection
5Screw
• Place the front protection (1) on the support (3) using
the screws (2).
• Tighten both ends of the front protection (1) with the
two side protections (4) using the four screws (5).
52
5
1 4
3
