Sodi GT4 - Bolting Torque Specifications

33
USER MAINTENANCE GUIDE
ADJUSTMENT AND MAINTENANCE OF THE CHASSIS
This document can not be reproduced or released without the Sodikart authorization.MAN.GT4.EN.01
Keep go-kart in original configuration
Use spare parts of Sodikart origin
GT4
4.11 - Bolting
Change nuts and bolts if damaged.

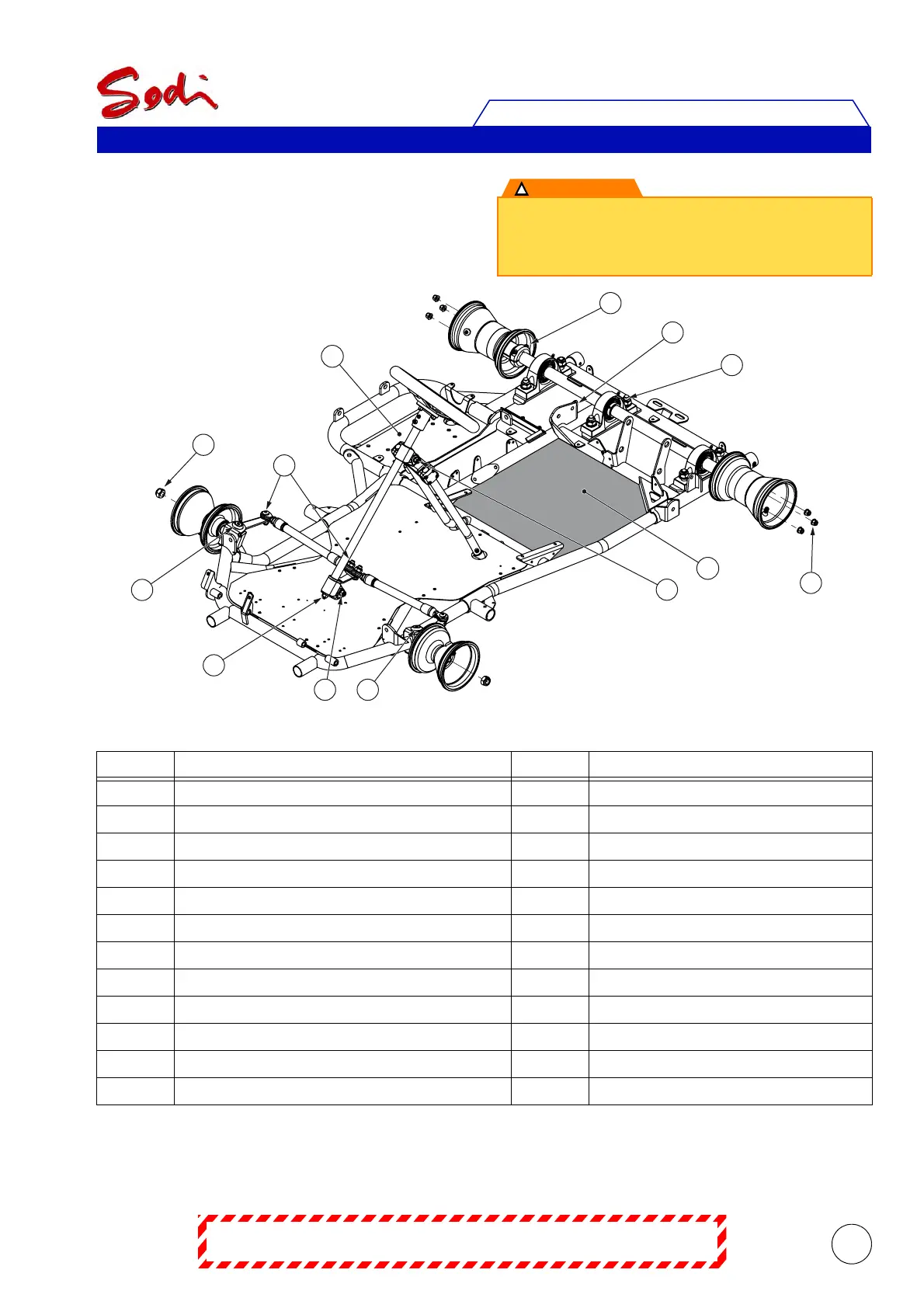

Check points
Item Description Quantity Tightening
1
wheel nylstop nuts
625Nm
2
screws CHC of hubs
440Nm
3
screws for bearings
650Nm
4
screws and nylstop nuts for engine platen
460Nm
5
screw for notched belt adjustment
140Nm
6
screws and nuts for seat (adjustable seat)
12
7
screw and nuts for plastic colomn support
125Nm
8
screws and nuts for stub axles
260Nm
9
screws and nuts for tie rod knuckle joint
467Nm
10
lower plastic column support screw and nut
140Nm
11
screws for stub axles
2 tighten them, then unscrew of ¼ rotation.
12
steering column screw and nut
125Nm
11
9
12
8
10
8
1
2
3
7
5
6
4
WARNING
!
 Although the safety points listed here must be
checked daily, it is obvious that other fastenings must
not be ignored.Indeed it is advised to check all
fastenings almost daily to minimise all risks.
