Sofar solar 20KTLX-G3 - Electrical Block Diagram; Efficiency and Derating Curve

SOFAR 15~24KTLX-G3 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd.
- 12 -
2.3. Electrical block diagram

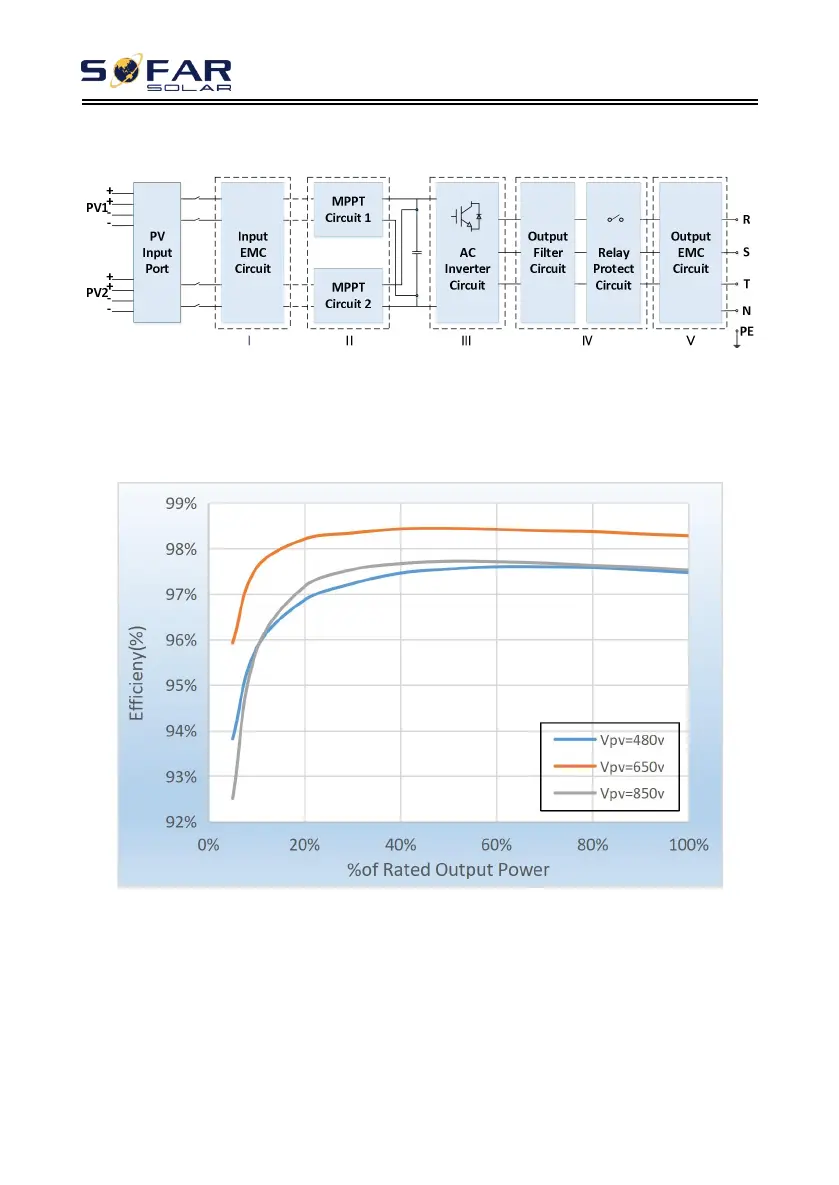

Figure 2-8 Schematic diagram
2.4. Efficiency and derating curve
Figure 2-9 Power efficiency curve (take 20KW for example)
