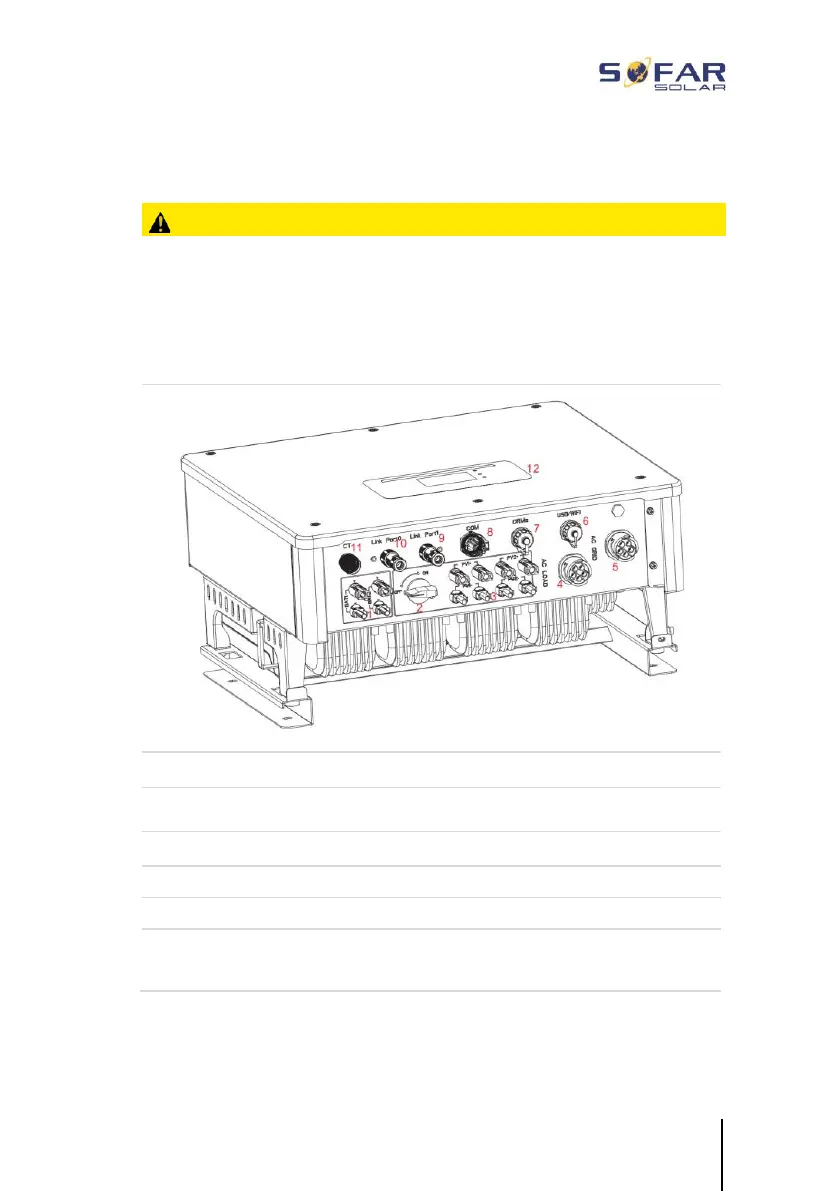

4.4 Connections
CAUTION
Damage during transportation
• Please check the product packaging and connections
carefully prior to installation.
①
Battery connection
②
DC switch
③
PV input terminals
④
AC load connection
⑤
AC grid connection
⑥
USB/WiFi
⑦
DRMs
⑧
Communication connection
⑨
Link port 1
⑩
Link port 0
⑪
Current sensor connection
(CT)
⑫
LCD display
