ELECTRICAL CONNECTIONS
42 HYD 5K...20KTL-3PH

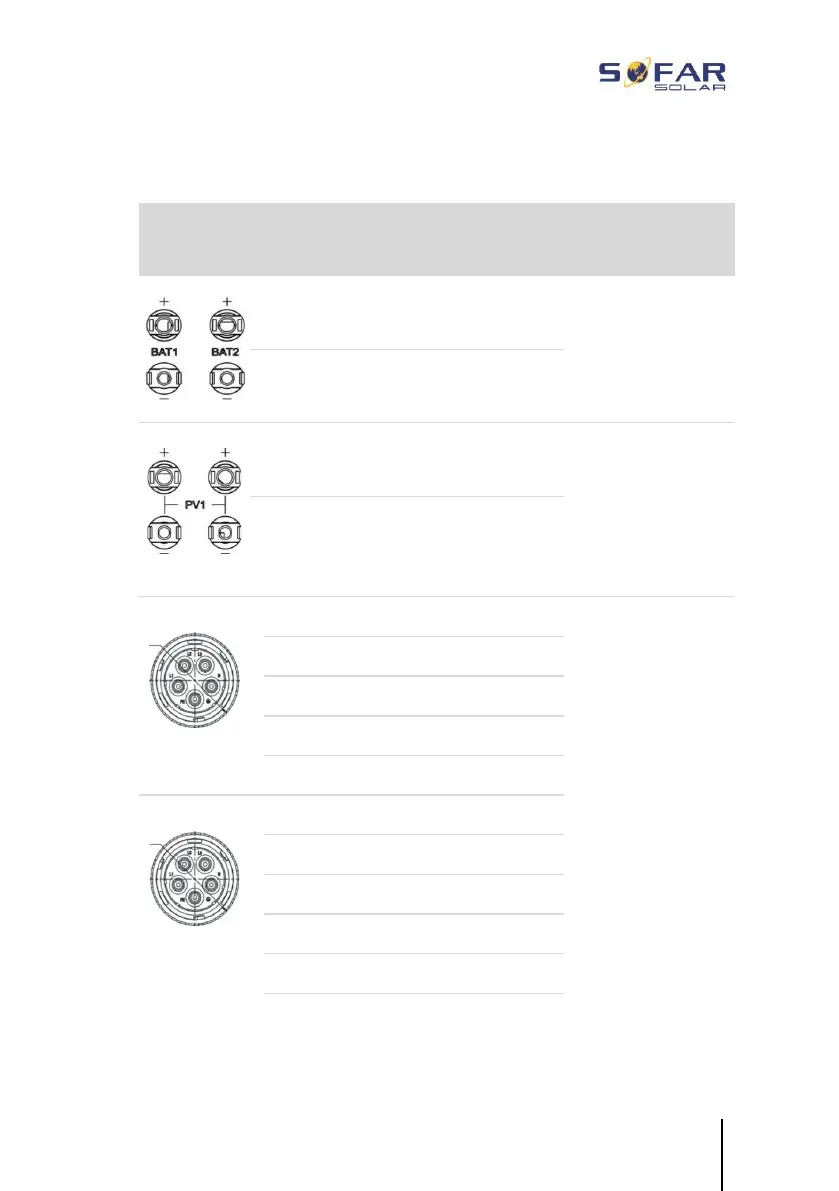

5.2 Wiring overview
Component
Description
Recommended
cable type
+ : Connect the positive cable of the
lithium battery
Outdoor multicore
copper cable
(4…6mm²)
- : Connect the negative cable of the
lithium battery
+ : Connect the positive cable of the PV
array
PV cable (4…6mm”)
- : Connect the negative cable of the PV
array
Load
L1
Outdoor multicore
copper cable (6…10
mm²))
L2
L3
N
PE
AC
L1
L2
L3
N
PE
