ELECTRICAL CONNECTIONS
HYD 5K...20KTL-3PH 73
Pin
Colour
Function
7
brown/white
Internally shorted
8
brown
Logic interface for VDE-AR-N 4105:2018-11
This function serves to control and/or limit the output power of the
inverter.

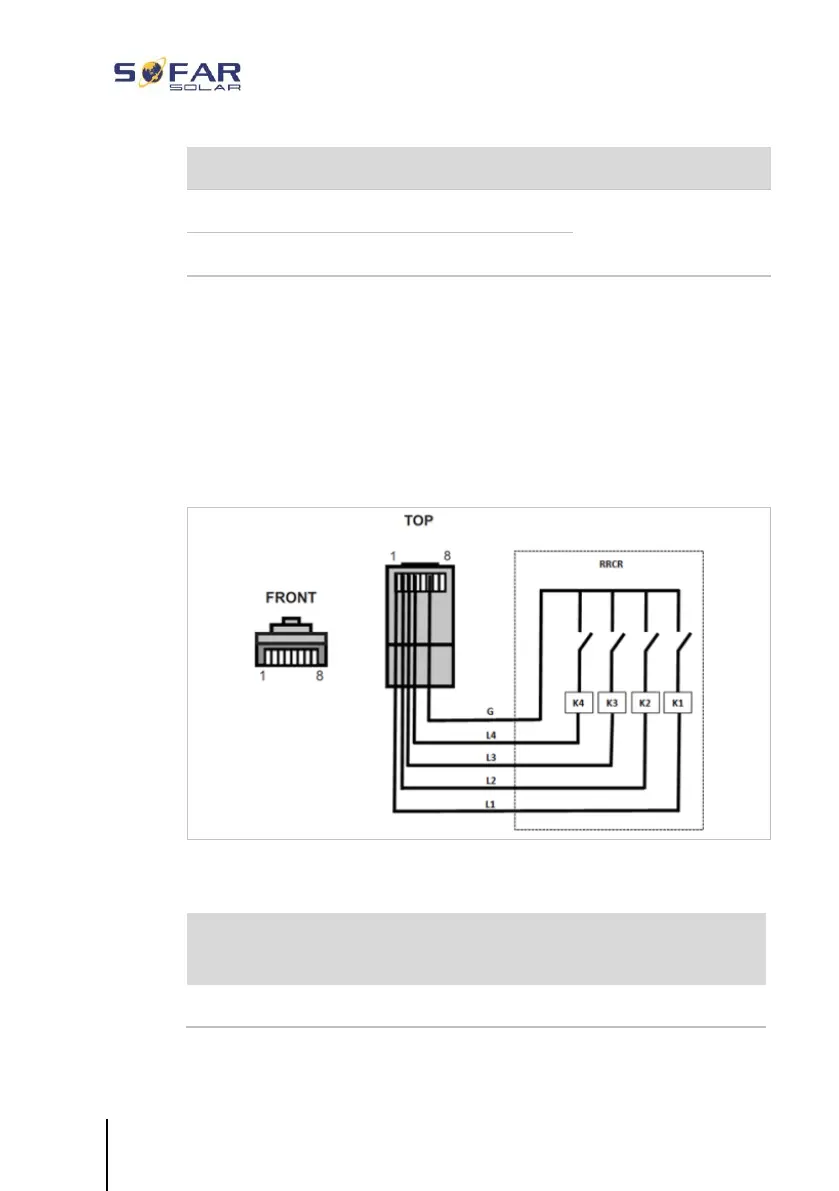

The inverter can be connected to a radio ripple control receiver in
order to dynamically limit the output power of all inverters within the
system.
The inverter is preconfigured on the following power levels:
Pin
Name
Inverter
Radio ripple control
receiver
1
L1
Relay 1 input
K1 - output relay 1
