INSTALLATION
26 SOFAR 1100...3300TL-G3
19
M4X14 Phillips screw, triple (only for DC
switch lock)
1

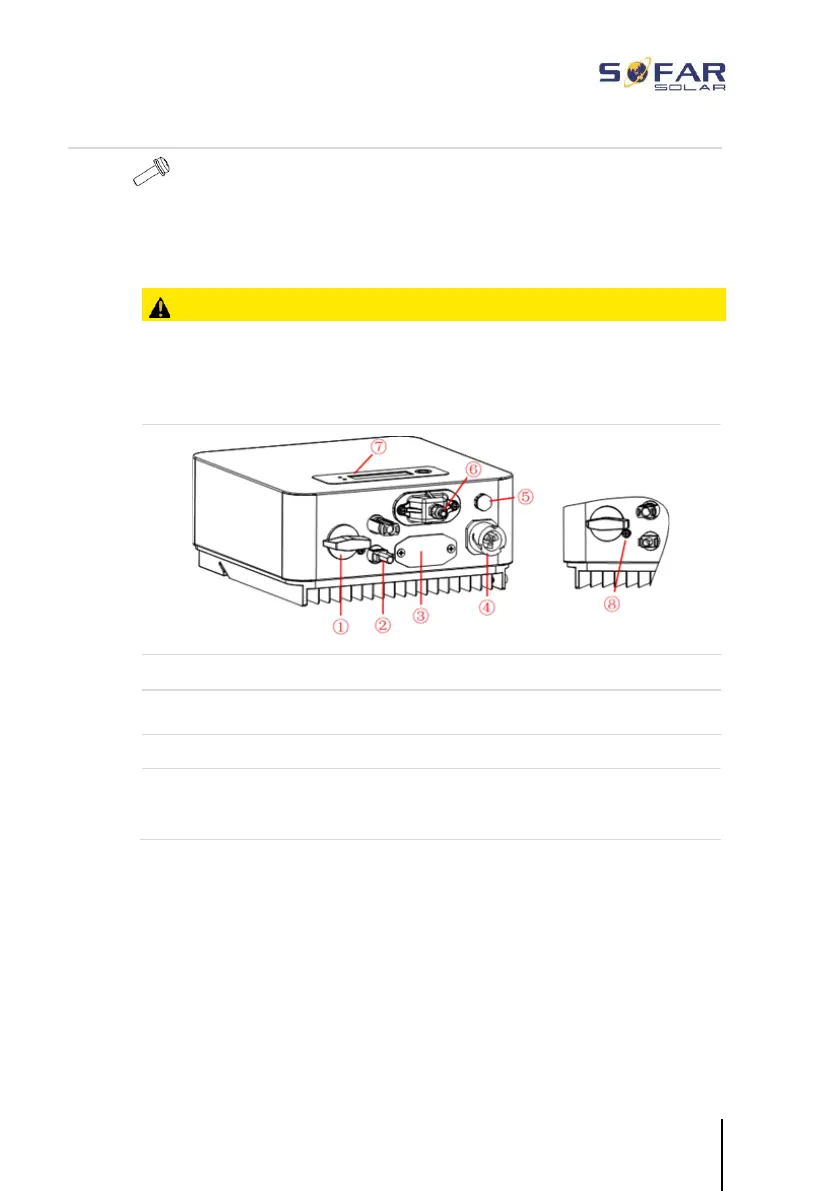

4.4 Connections
CAUTION
Damage during transportation
• Please check the product packaging and connections
carefully prior to installation.
①
DC switch
②
PV input terminal
③
WiFi/GPRS/Ethernet
④
Grid connection port
⑤
Venting valve
⑥
USB/DRMs/RS485/CT
⑦
LCD
⑧
DC switch lock (for Australian
models)*
*Note: Insert the screw into the hole on the DC switch to lock the
switch. Remove the screw prior to the switch.
4.5 Tools
Prepare the tools required for the installation and the electrical
connection.
