ELECTRICAL CONNECTIONS
36 SOFAR 1100...3300TL-G3

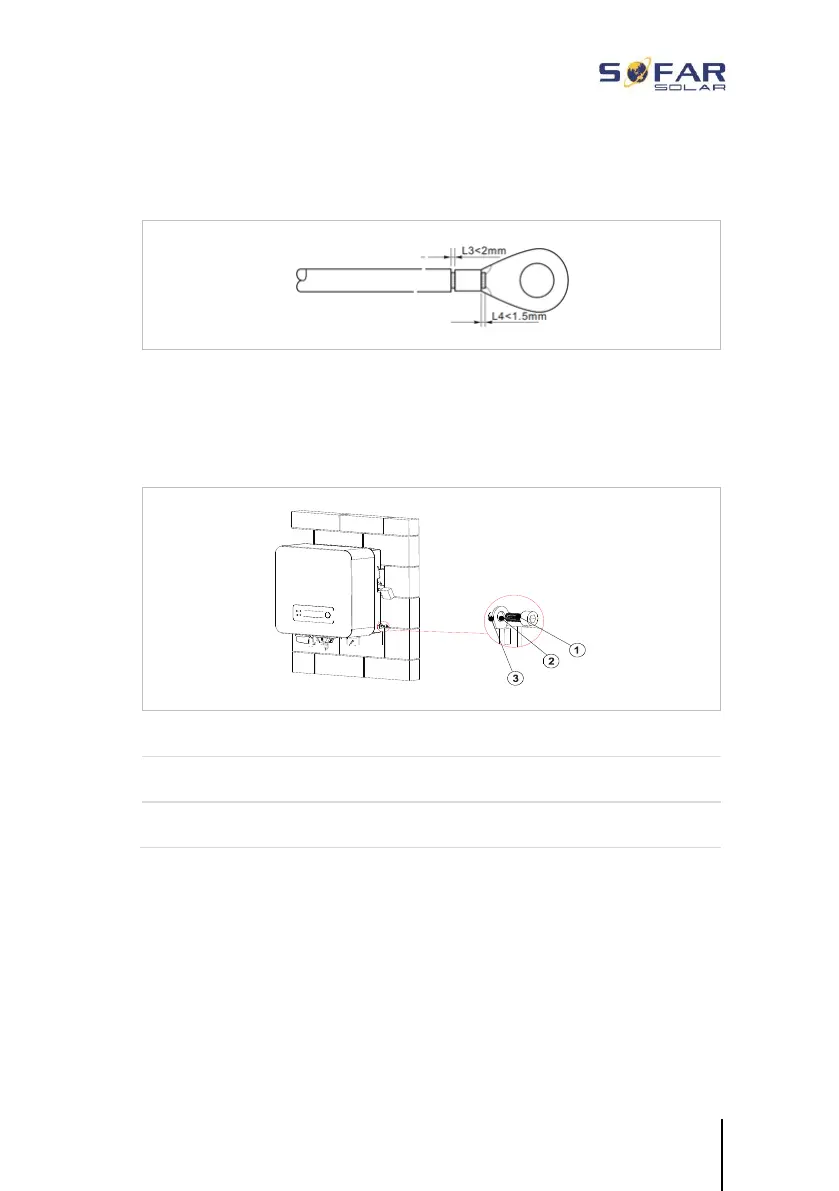

2. Crimp the cable to the ring terminal:
3. Install the crimped ring terminal and the washer with the M5
screw and tighten these with a torque of 3 Nm using an Allen
key:
①
M5 screw
②
Ring terminal
③
Threaded hole
5.4 Connecting the DC cables
Please observe the recommended cable dimensions:
