ELECTRICAL CONNECTIONS
SOFAR 1100...3300TL-G3 37
Cable cross-section (mm
2
)
Outer diameter
of cable (mm)
Range
Recommended value
4.0 … 6.0
4.0
4.5 … 7.8
1. Remove the crimp contacts from the positive and negative
connections.

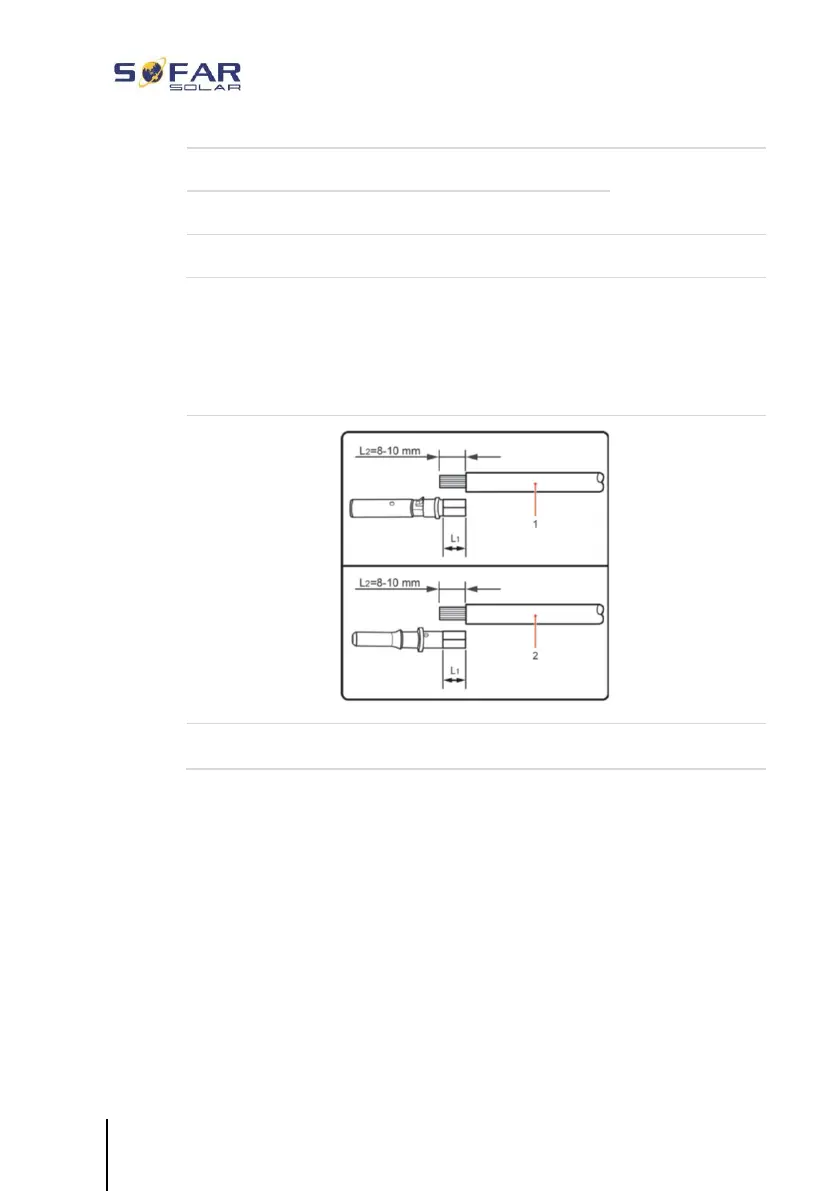

2. Remove the insulation of the cables:
①
Positive DC cable
②
Negative DC cable
Note: L2 is 2 to 3 mm longer than L1
3. Insert the positive and negative DC cables into the corresponding
cable glands.
4. Crimp the DC cables. The crimped cable must be able to withstand
a tractive force of 400 Nm.
