SOFAR 60-80KTLX-G3 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd.
R type terminal, Insulating sleeve,
RNBS14-6 (8awg). terminal shall not be exposed.

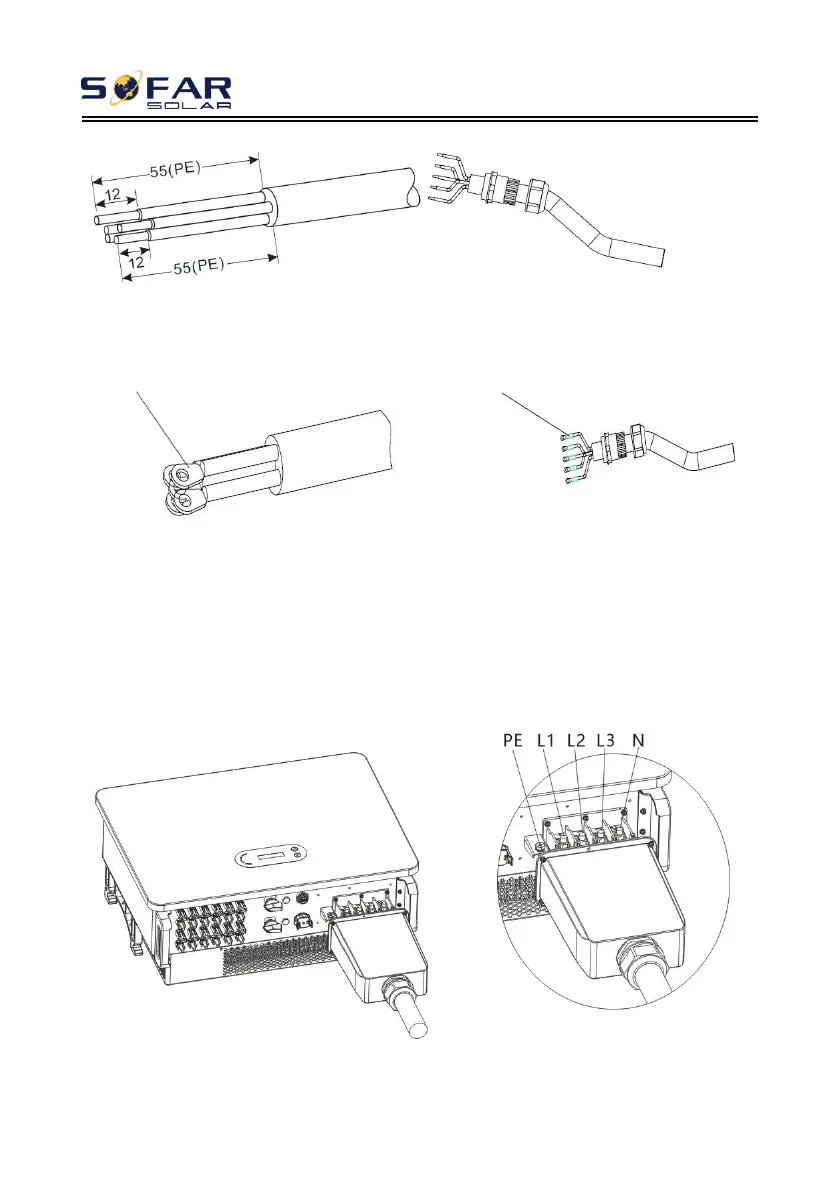

Figure 5-8 AC cable connection instruction diagram (1)
Step 3: After assembling the PG waterproof connector, connect the cable to the AC
terminal block L1, L2, L3, N, PE contacts, and fasten them (8~12 N · m). Take out the AC
terminal insulation partition, clamp the AC output wiring cover and screw on the AC
wiring terminal (2~3 N · m).
Figure 5-9 AC cable connection instruction diagram (2)
