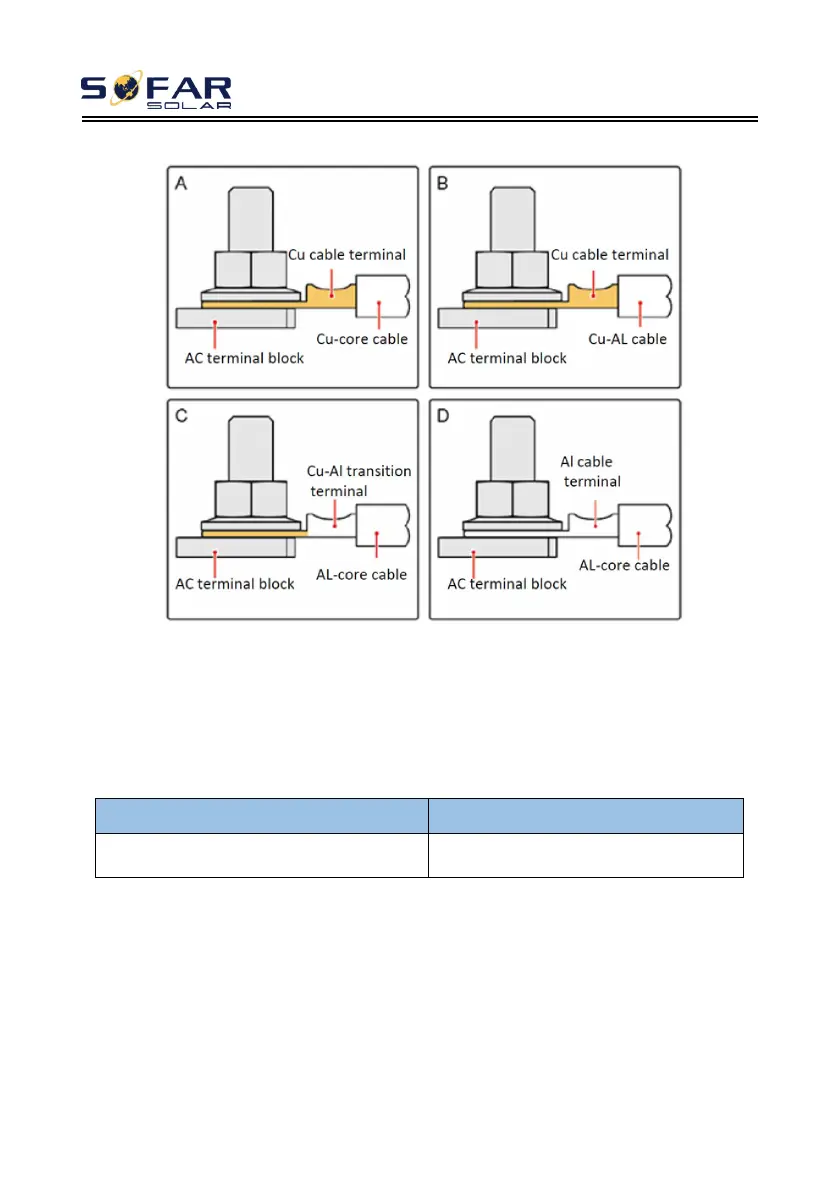

Note: Copper - aluminum conversion terminals are required when aluminum wires are used.
OT/DT Requirement for terminal connection
5.4. Connect PV side of inverter
（
DC-Input
）
Figure 5-2 Recommend DC cable size (maximum tolerance voltage >= 1100V PV cable)
Copper cable cross section area（mm2）
Cable OD (mm)
2.5~6.0
6.0~9.0
Step 1: Find the metal contact pins in the accessories bag, connect the cable
according below diagram (1.Positive cable, 2. negative cable)；
