Note ： Please use multimeter to make sure the PV array positive pole and
negative pole!
Dealing ： If need to remove the PV connector from inverter side, please use the
Removal Tool as below diagram, move the connector gently.
Before, moving the positive and negative connector, please make
sure “DC Switch” is on OFF position.

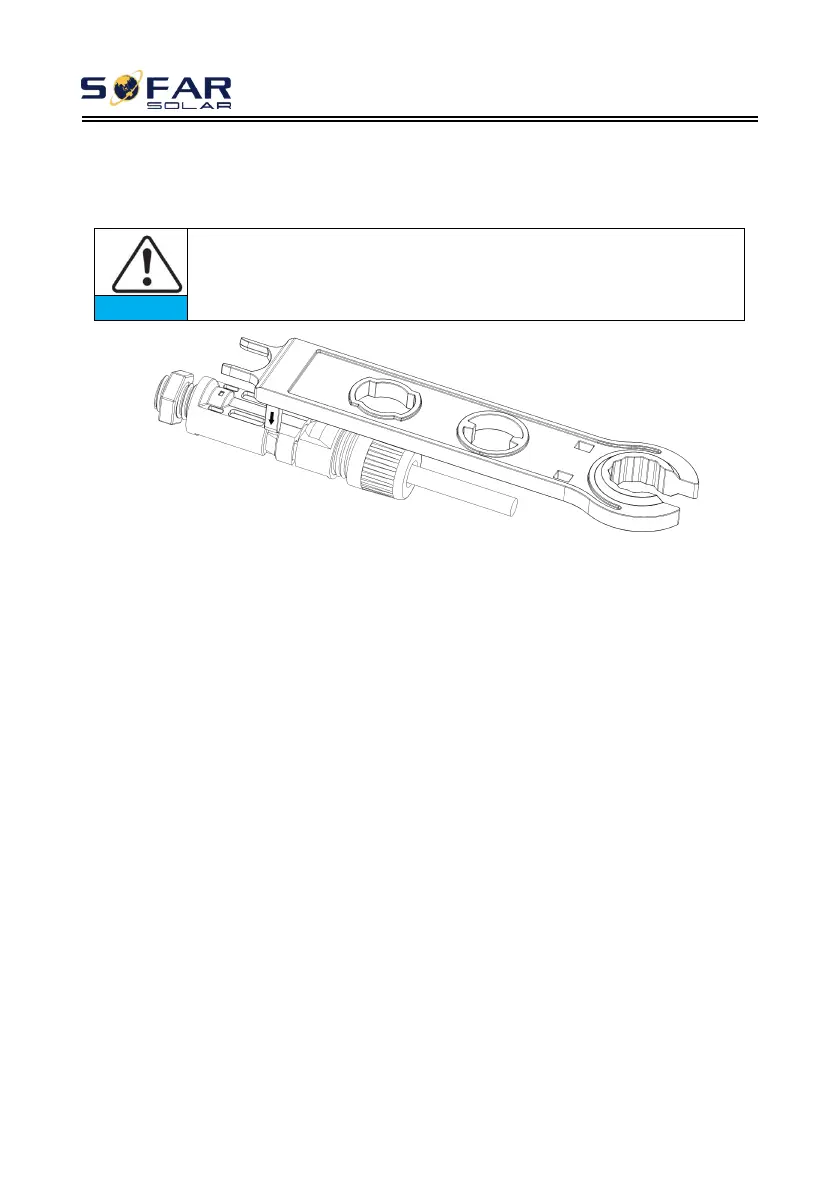

Figure 5-15 Removal DC connector
5.5. Communication Connection
Note：When layout the wiring diagram, please separate the communication wiring
and power wiring in case the signal be affected.
SOFAR 60~80KTLX-G3 inverter has one USB Port and one COM Port, as shown in the
following figure.
