SOFAR 60-80KTLX-G3 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd.
Labels on the equipment
Note: label must NOT be hidden with objects and extraneous parts (rags, boxes, equipment, etc.,); they
must be cleaned regularly and kept visible at all times.

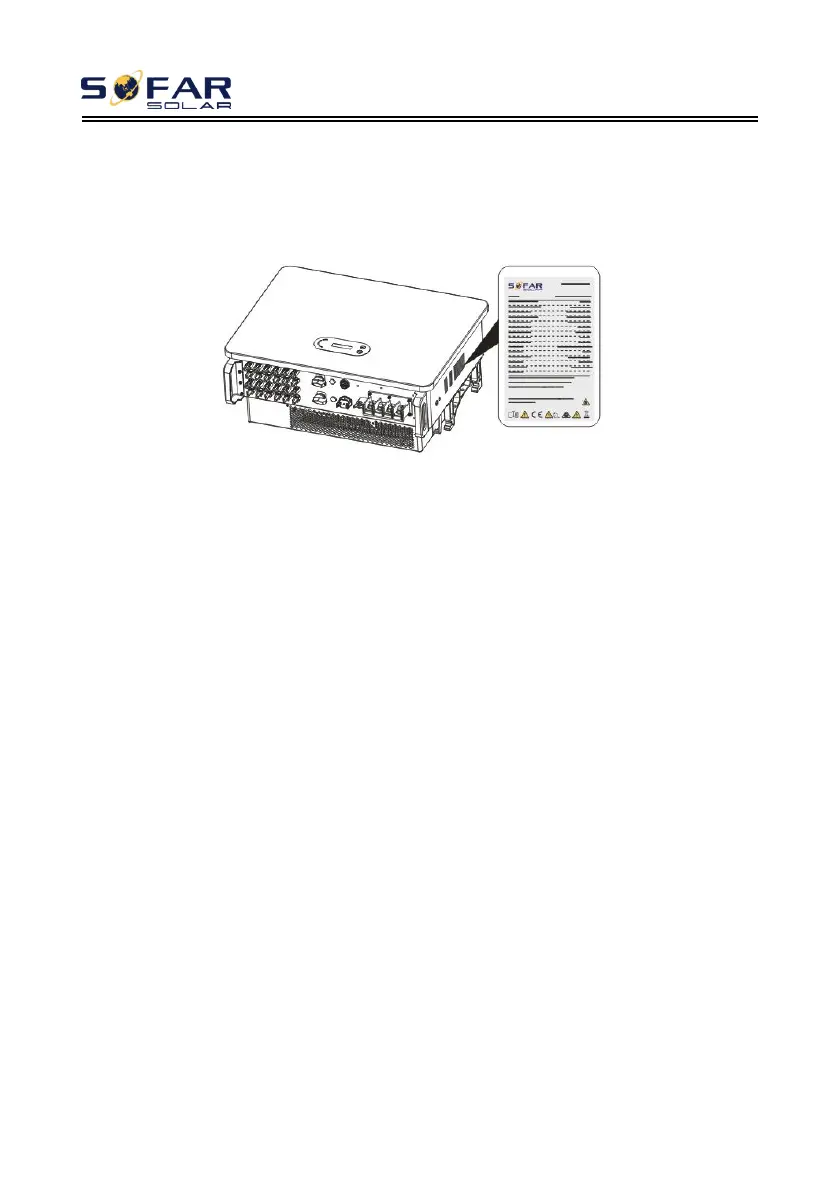

Figure 2-6 Product label
2.2. Function Description
DC power generated by PV arrays is filtered through Input Board then enter Power
Board. Input Board also offer functions such as insulation impedance detection and
input DC voltage/ current detection. DC power is converted to AC power by Power
Board. AC power is filtered through Output Board then AC power is fed into the
grid. Output Board also offer functions such as grid voltage/ output current
detection, GFCI and output isolation relay. Control Board provides the auxiliary
power, controls the operation state of inverter and shows the operation status by
Display Board. Display Board displays fault code when inverter is abnormal
operation conditions. At the same time, Control Board can trigger the replay to
protect the internal components.
Function Module
A. Energy management unit
Remote control to start/ shunt down inverter through an external control.
B. Feeding reactive power into the grid
The inverter is able to produce reactive power, thus to feed it into the grid through
