Software House RM-DCM-2 - RM-4 E Input Configuration and Status; RM-4 E Input Connections

Inputs
19

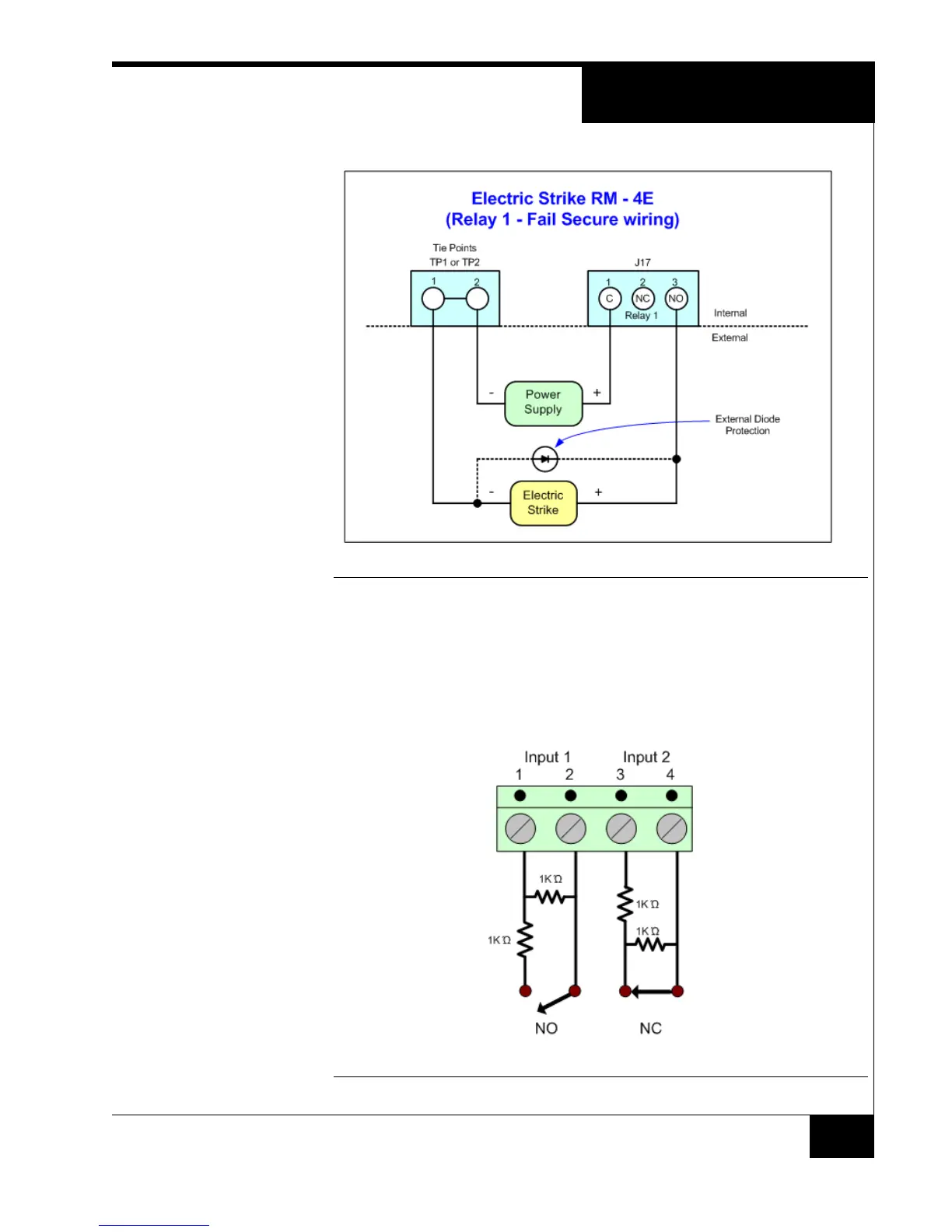

FIGURE 10. Relay 1 - Fail Secure Wiring
INPUTS
Input 1 and Input 2 Connect inputs using the standard Software House supervision for either
NO or NC. Figure 11 shows an example of wiring Normally Open (NO)
and Normally Closed (NC) inputs.
FIGURE 11. Input Wiring
