Module Dimensions Figure 17 shows the dimensions of the RM-4E, R/8, and I/8 modules.
Maximum component height is 0.5 inches (12.7 mm).

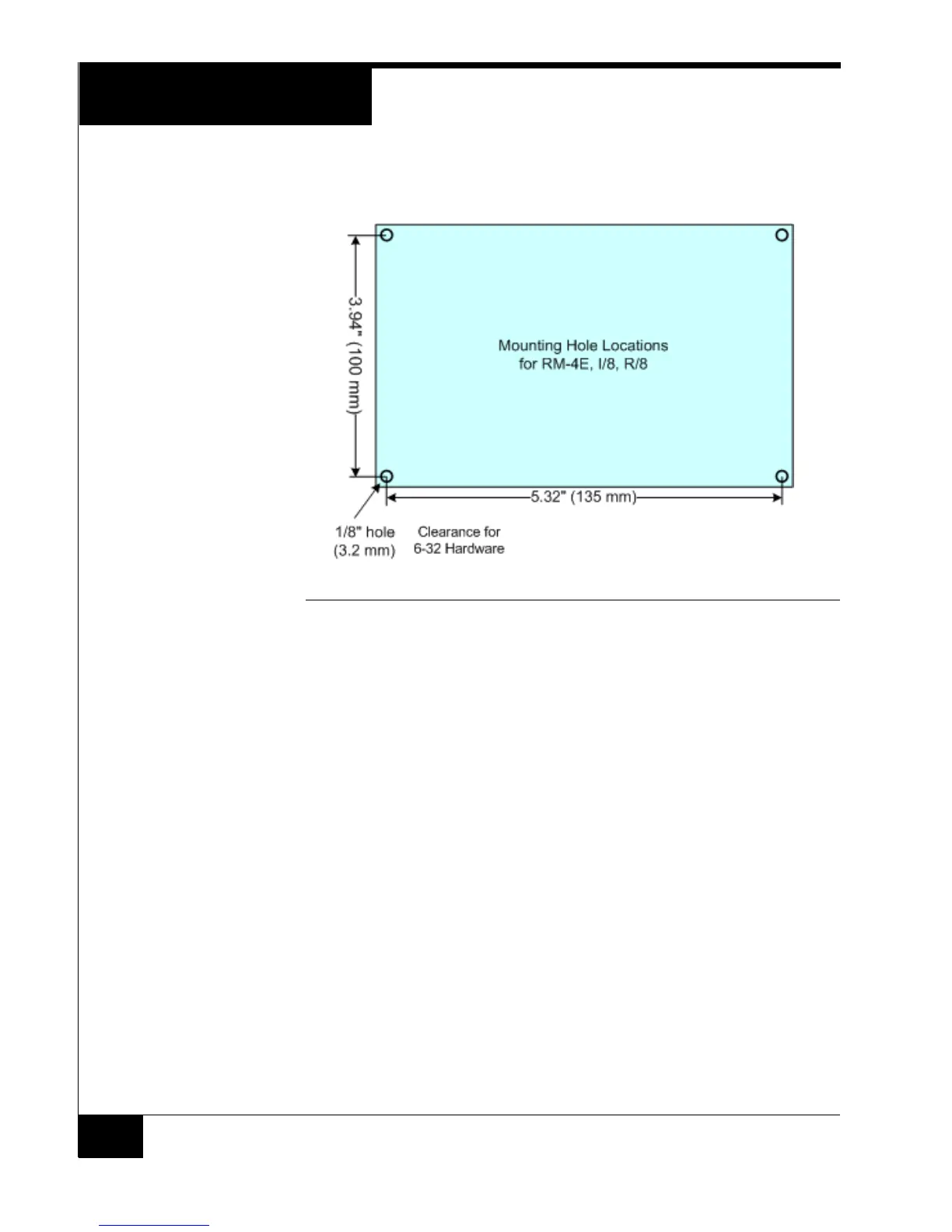

FIGURE 17. RM-4E, R/8, and I/8 Mounting Hole Dimensions
Enclosures UL has approved the RM-DCM-2 enclosure for use with R/8, and I/8
boards.
Mounting the RM-4E, R/8, and I/8 Boards
To mount the RM-4E, R/8, and I/8 boards in an RM-DCM-2 enclosure,
use four 1/4” 6-32 screws and star washers to secure the boards to the
mounting studs in the enclosure (see Figure 18).
There are four possible mount positions for the three boards in the
enclosure.
