RM-DCM-2 Unit
3
RM-DCM-2 UNIT

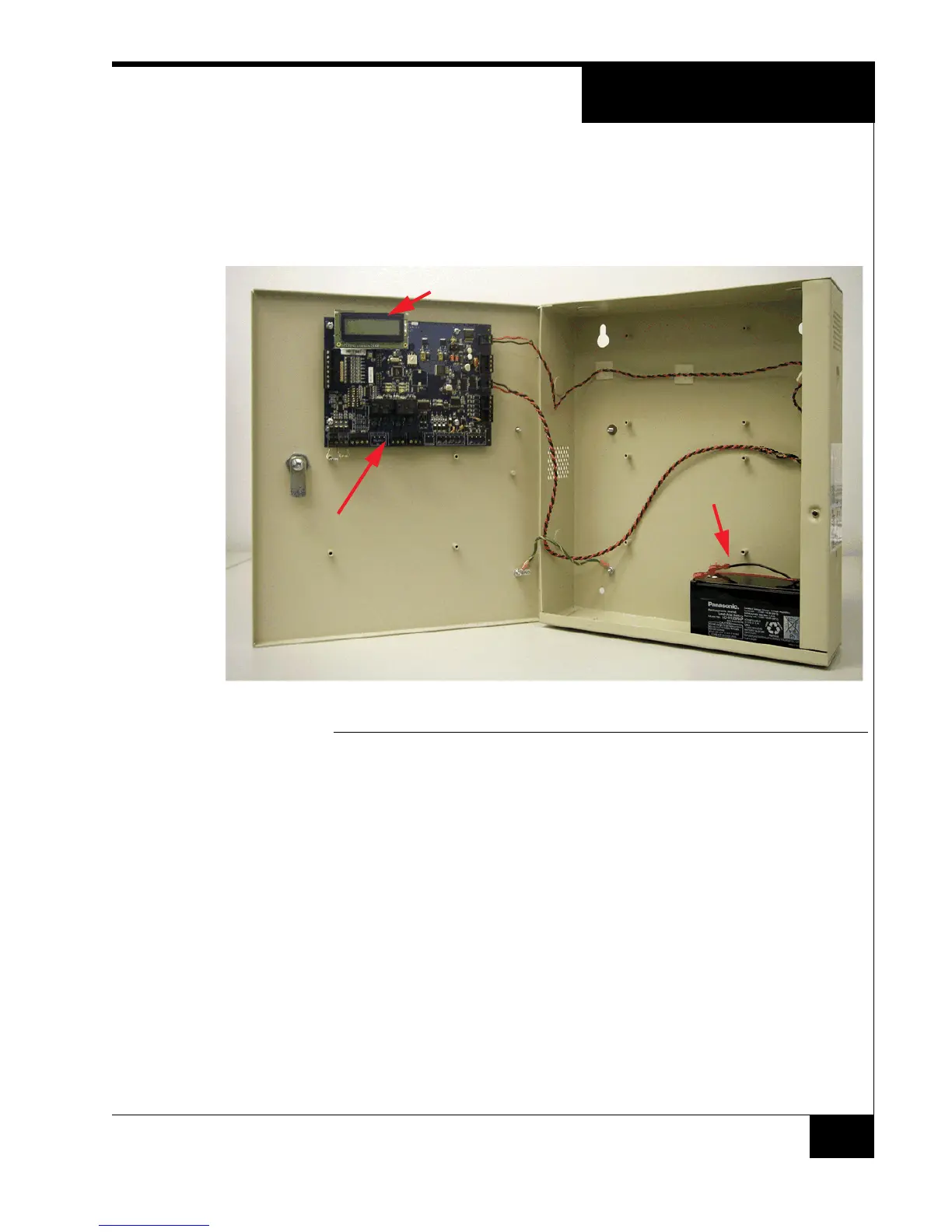

Figure 1 shows the RM-DCM-2 unit with one RM-4E board, an optional
battery, and LCD.
NOTE UL has evaluated this configuration only.
FIGURE 1. RM-DCM-2 with Battery and LCD
FEATURES
RM-DCM-2 features include:
LED status indicators – display RS-485, inputs, outputs, and power
status.
Maglock component – for use with door objects.
Bypass component – connects to a release switch on a door secured
by a magnetic lock.
On-board battery charger – supplies power to an optional battery for
memory retention in the event of a power failure.
NOTE The on-board battery is for memory retention only. UL has not evaluated
the battery for the Standby Power requirements of the UL294 Standard.
RM-4E
Battery
LCD
