sol-ark 5K-P - Wiring Diagrams

January 26
th
, 2022 8

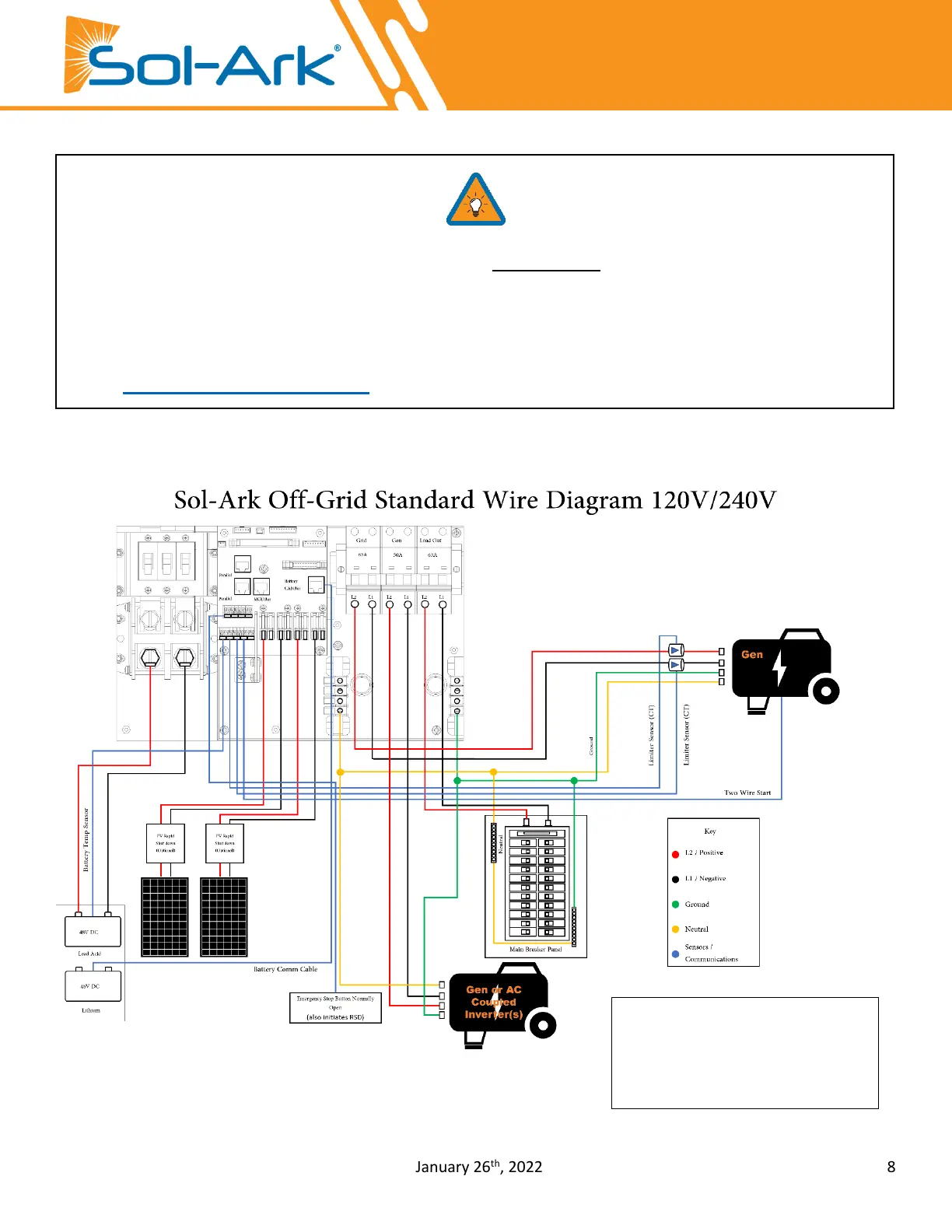

Wiring Diagrams
These Single Line Diagrams (SLDs) are examples of common use-cases for
Sol-Ark inverters.
Sol-Ark does not provide custom diagrams; however, you may contact
support@sol-ark.com
for any questions about an existing SLD.
CT Sensors are optional, but
necessary to enable Peak Shaving.
See pg. 21 and pg.39 for additional
info.
Diagram 1
