7.3 TIG LIFT Installation

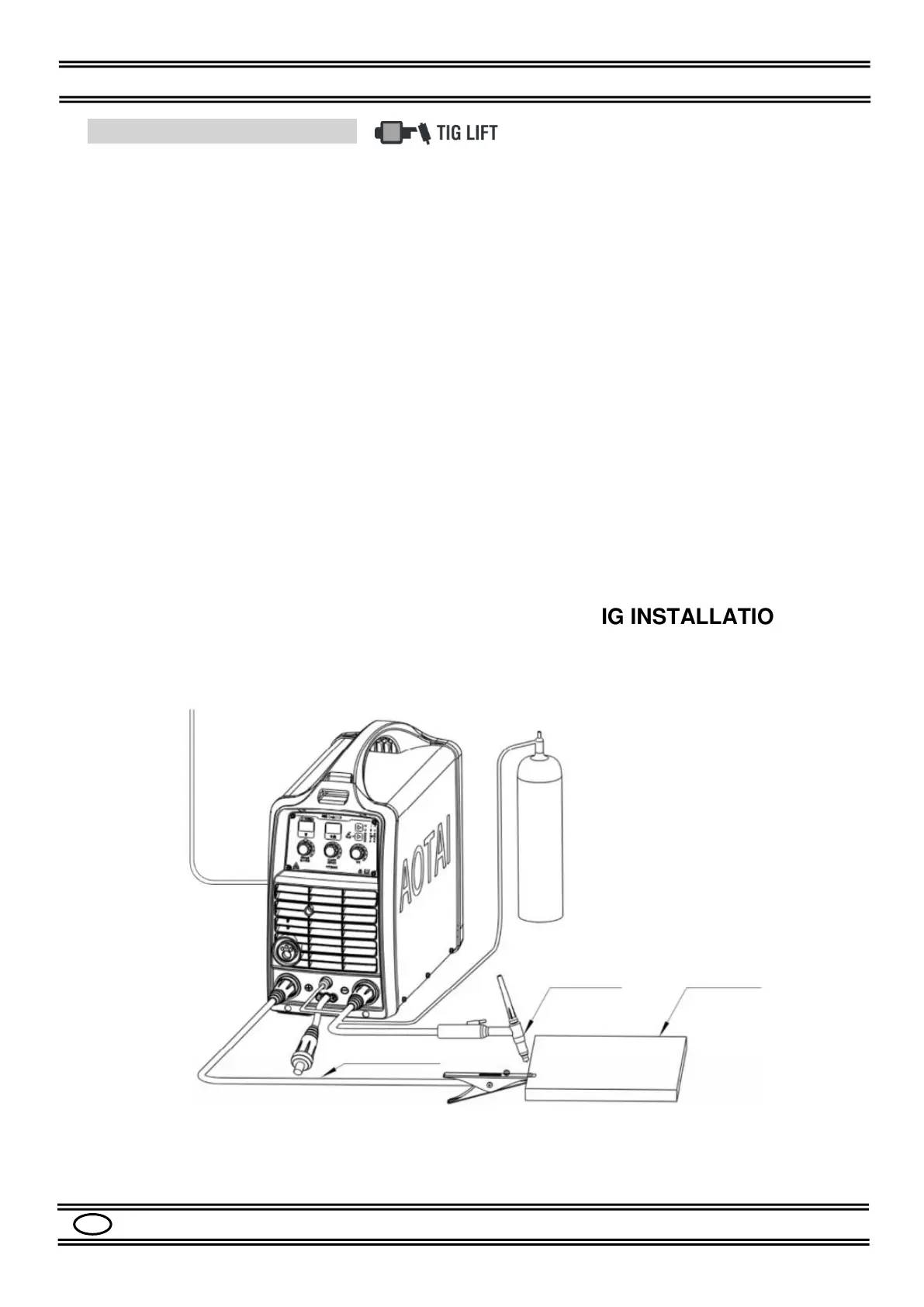

Please refer to the Figures 1, 2, 3, 4.
Note: use a torch with a gas flow adjustment tap on the handle.
- Make sure that the switch (9) is in the "0" position.
- Connect the TIG TORCH to the socket (3) (-) of the machine.
- Connect the GROUND CABLE to the socket (5) (+) of the machine.
- Secure the other end of the ground cable to the workpiece, making sure there is good
electrical contact.
- Install the GAS regulator on the gas cylinder.
- Connect the GAS hose of the torch to the GAS regulator of the cylinder.
- Open the gas cylinder regulator.
- Adjust the gas flow to the appropriate value (5-8 Lt / min).
- Turn on the machine with switch (9).
- Press the MODE button (18) to select the TIG LIFT mode.
- Set the welding current with the CURRENT knob (20).
The current is shown on the display.
- Adjust the other welding parameters as described in Par. 8.2.
- The machine is now ready to weld.
