Sol PLUS Series - Page 55

27
Instruction Manual
PLUS 210 C
EN
English
EN
H03 - ANTI-STICKING (only in MMA mode)
With this function set to ON, the output current goes to about 15A when the electrode short-
circuits with the workpiece. This allows you to avoid damaging the electrode being used and to
be able to detach from the piece without difficulty.
9. SPOOL GUN SOCKET

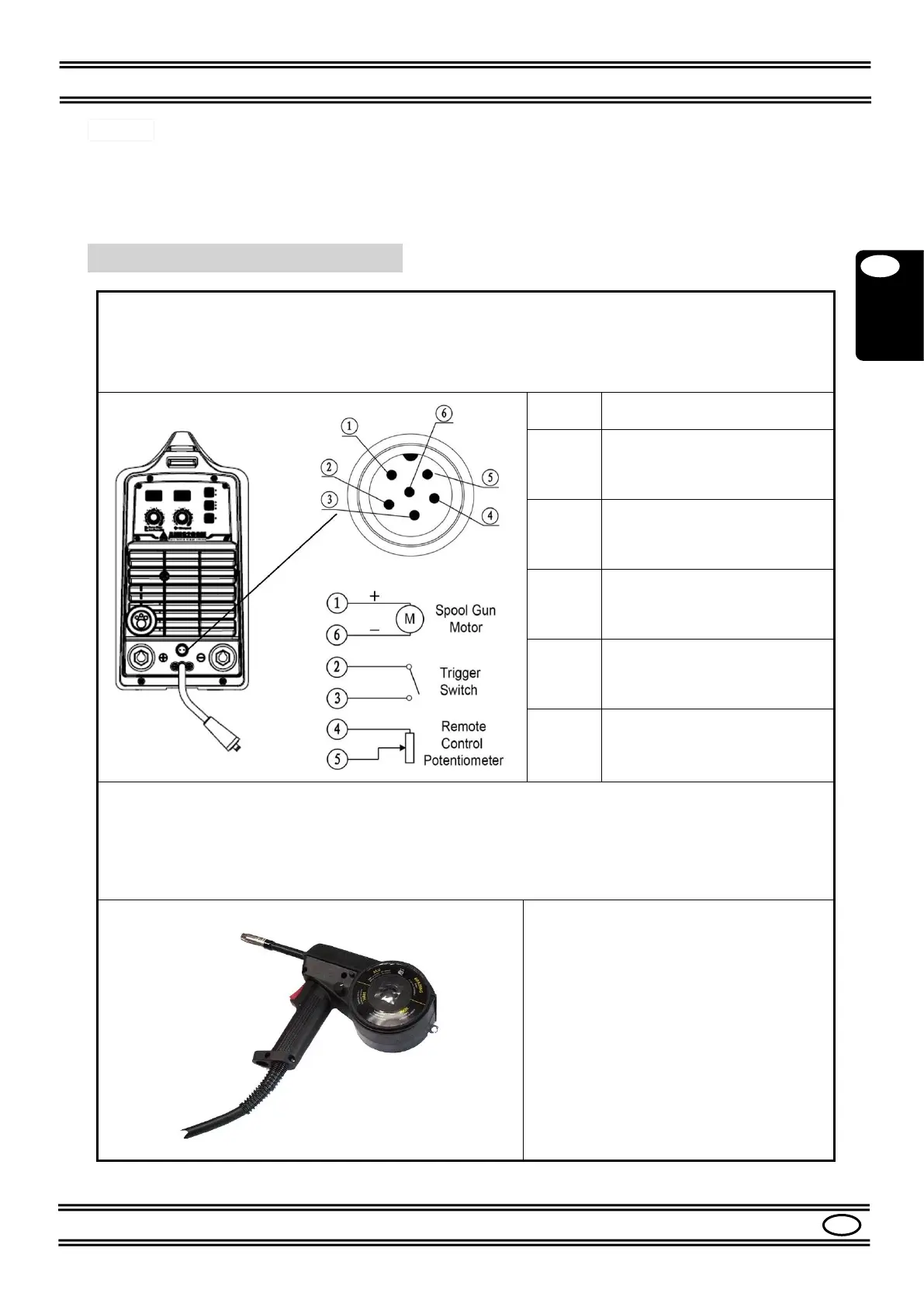

The connection diagram of the SPOOL GUN torch socket (optional) is shown below.
Refer to figures 1, 3, 8.
Note: before connecting, check if the selector (12) in the spool holder compartment is in
the "SPOOL GUN" position.
Pin N°
Description
1
Positive (+) SPOOL GUN
motor torch (24VDC)
2, 3
Torch Button
4
Minimum of the
potentiometer (4K7)
5
Potentiometer slider (4K7)
6
Negative (-) SPOOL GUN
torch motor (24VDC)
When the plug is connected to the machine, the SPOOL GUN wire feed motor will operate
instead of the machine's one.
In this version of the machine it is not possible to adjust the motor speed from the SPOOL
GUN torch knob, adjust it on the front panel of the machine.
SPOOL GUN torch.
