LEDs: three LEDs indicate, by color and state (on/ off/ blinking
(1)
/
flickering
(2)
/alternating
(3)
), different system information, such as
errors or performance indications. For more information, refer to
https://www.solaredge.com/leds.
The main LED indications are:
Blue ON - the inverter is communicating with the monitoring
platform
Green ON- the system is producing
Green blinking - AC is connected but the system is not
producing
Red ON - system error

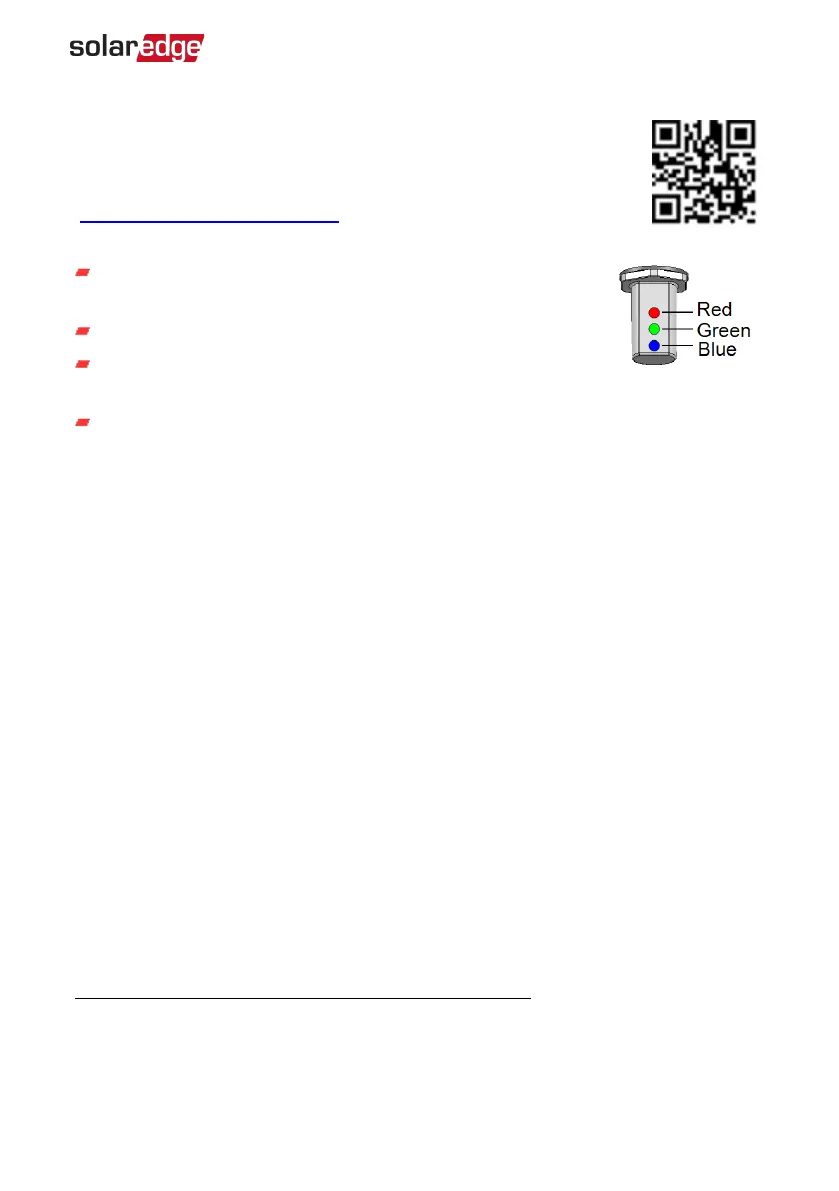

Figure 7: LEDs
The following table describes system performance information by LED color and
ON/OFF/P switch position.
(1)
Blinking = Turns ON and OFF for the same duration
(2)
Flickering = Turns ON for 100 ms and turns OFF for 5 seconds
(3)
Alternating = Alternate LED flashes
Chapter 3: Installing the Inverter 24
