1. Turn OFF the AC circuit breaker.
2. Release the six Allen screws of the inverter cover and carefully move the cover
horizontally before lowering it.
CAUTION!
When removing the cover, make sure not to damage internal components.
SolarEdge will not be held responsible for any components damaged as a
result of incautious cover removal.
3.

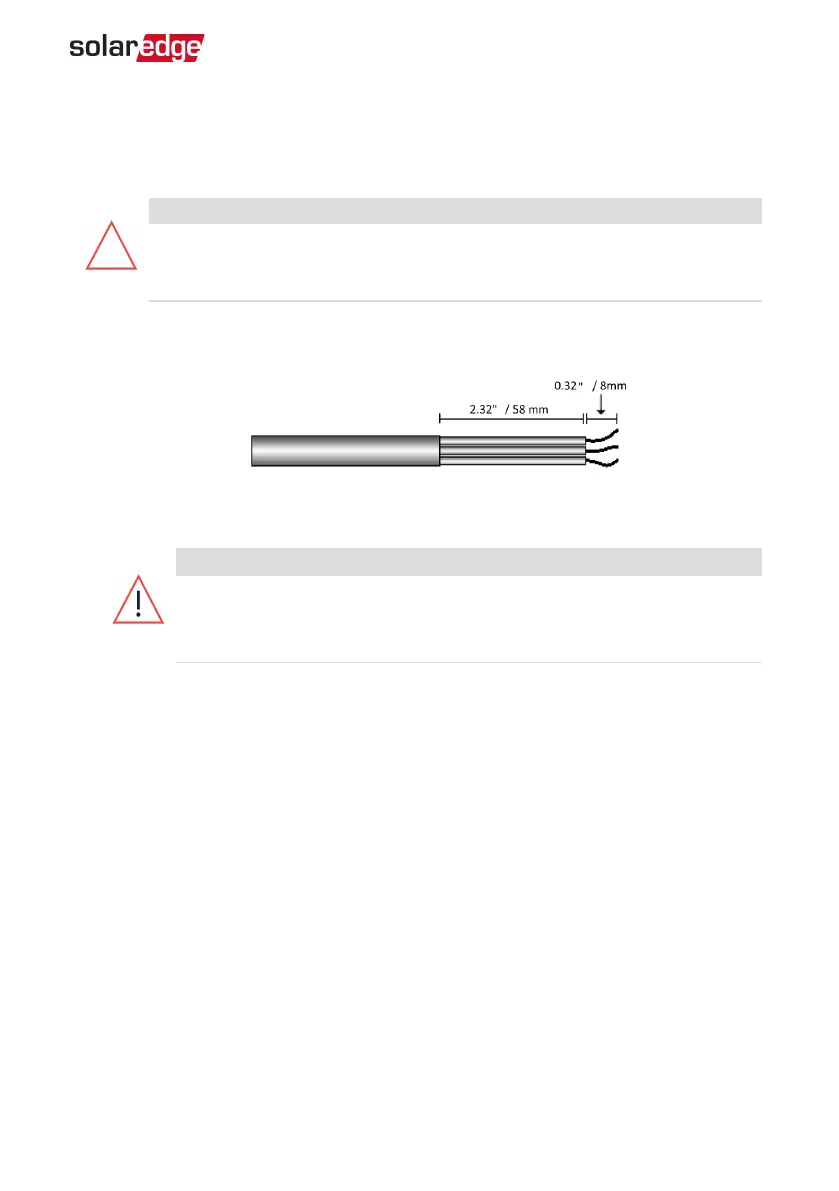

Strip 58 mm / 2.32'' of the external cable insulation and strip 8 mm / 0.32'' of the
internal wire insulation.
Figure 12: Insulation stripping – AC (3-wire cable)
4.
Open the AC cable gland and insert the cable through the gland (see ).
WARNING!
Turn OFF the AC before connecting wires to the AC terminals. If
connecting equipment grounding wire, connect it before connecting the
AC Line and Neutral wires.
5.
For SE25K, SE27.6K, and SE33.3K three phase inverters, attach the supplied Ferrite
bead to the AC wires:
1. Insert the AC wires through the supplied bead.
2. Connect the AC wires to the terminal blocks as described in the next steps.
3. Tighten the wires to the bead using the supplied T-wrap.
Chapter 4: Connecting the AC and the Strings to the Inverter 31
Three Phase System MAN-01-00507-4.2
