2.
Open Communication Gland 2 and insert the other end of the communication cable
through the gland.

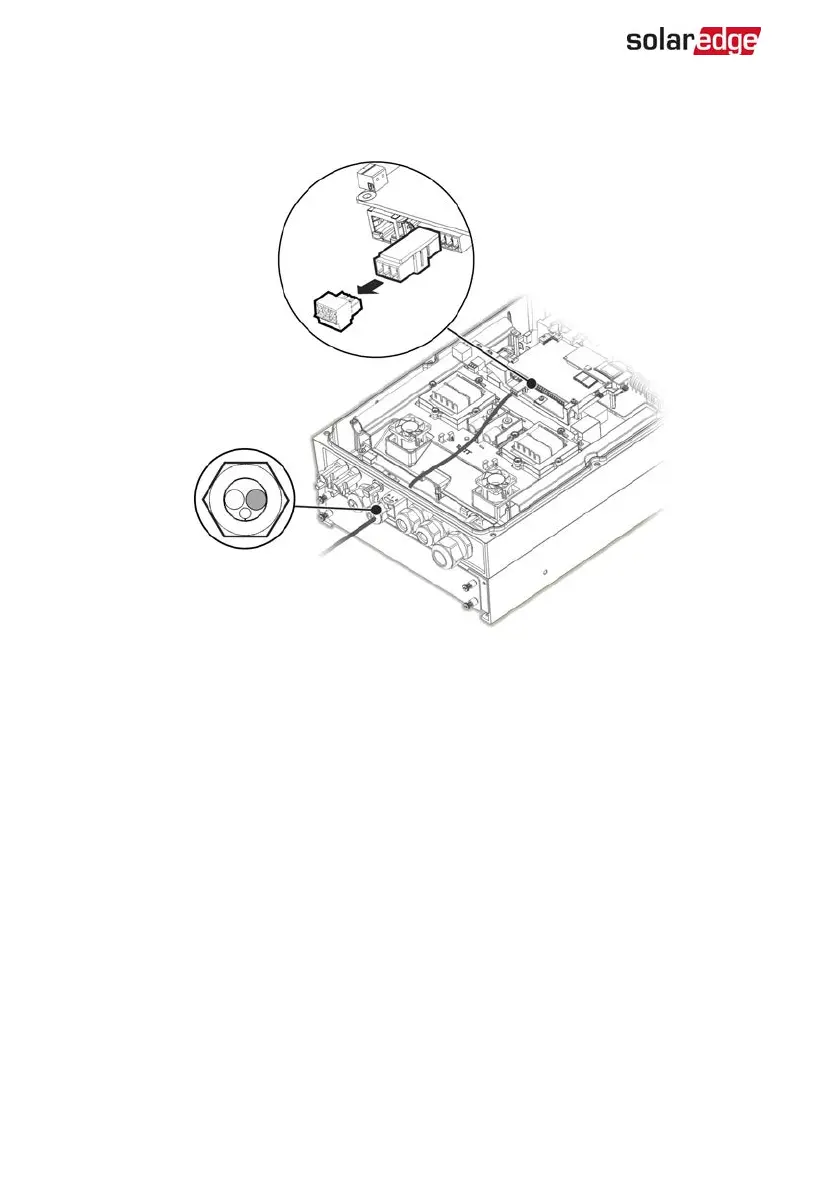

Figure 13: Meter Connection
3.
Remove the 3-pin connector from the RS485-1 port on the communication board
and loosen its screws.
StorEdge Three Phase Inverter MAN-01-00648-1.3
35 Connecting the Energy Meter
