7.
Insert the two supplied screws through the outer heat sink fins on both sides of the
inverter and into the bracket (see
Figure 7
).
Tighten the screws with a torque of 4.0 N*m / 2.9 lb.*ft.

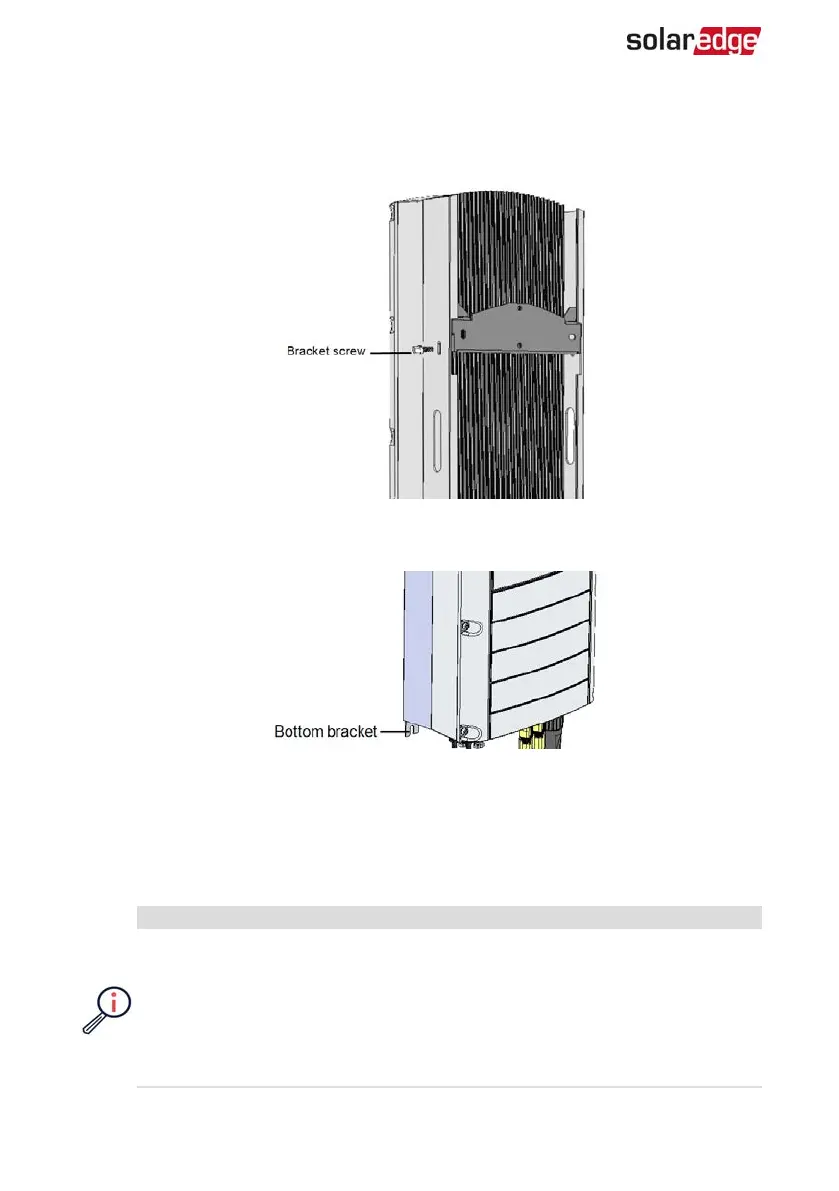

Figure 8: Inserting the bracket screws
8.
Fasten the inverter to the surface using the bottom bracket.
Figure 9: Bottom bracket
9.
Remove the inverter cover: Open the inverter cover’s ten Allen screws and carefully
pull the cover horizontally before lowering it.
Selecting a Residual Current Device (RCD)
IMPORTANTSAFETYFEATURE
All SolarEdge inverters incorporate a certified internal Residual Current Device
(RCD) in order to protect against possible electrocution and fire hazard in case
of a malfunction in the PV array, cables or inverter. There are two trip
thresholds for the RCD as required for certification (DIN VDE 0126-1-1). The
default value for electrocution protection is 30 mA, and for slow rising current
is 300 mA.
StorEdge Three Phase Inverter MAN-01-00648-1.3
28 Selecting a Residual Current Device (RCD)
