3. Position the mounting bracket against the wall/pole and mark the drilling hole
locations :
Ensure that the flat edge of the bracket is at the bottom, as in
Figure 7
.
Use at least two bracket holes. Additional holes can be used to fix the bracket.
Determine which and how many holes to use according to mounting surface
type and material.
4. Drill the holes and mount the bracket. Verify that the bracket is firmly attached to
the mounting surface.
NOTE
When mounting an inverter on an uneven surface, you may use spacers/
washers behind the top mounting hole of the bracket. Depending on the angle,
use the appropriate size and number of spacers so that the bracket is
perpendicular to the ground. Recommended: a stainless steel 3/4" long screw,
with a 1/4" socket button head , two jam nuts and three washers.
5. Hang the inverter on the bracket (see
Figure 7
): Lift the inverter from the sides, or
hold it at the top and bottom of the inverter to lift the unit into place.
6.
Align the two indentations in the inverter enclosure with the two triangular
mounting tabs of the bracket, and lower the inverter until it rests on the bracket
evenly.

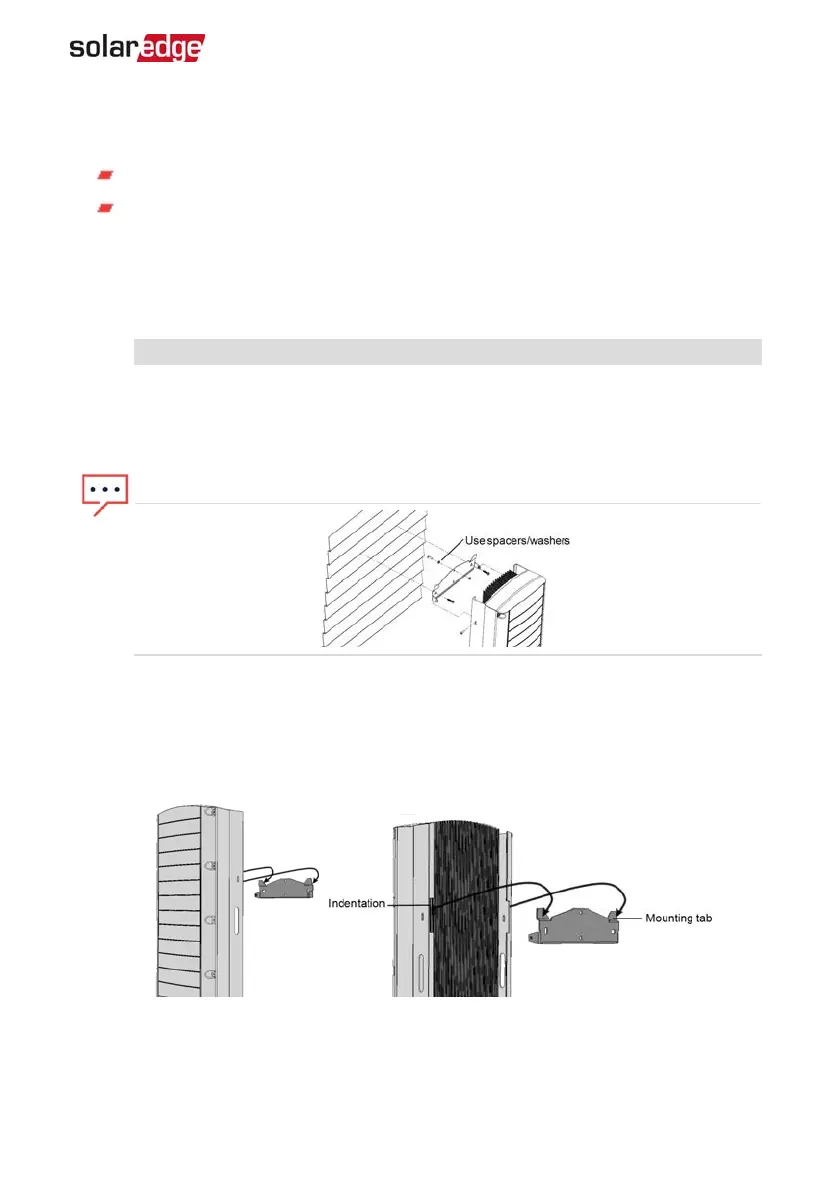

Figure 7: Hanging the inverter on the bracket
Chapter 3: Installing the Inverter 27
StorEdge Three Phase Inverter MAN-01-00648-1.3
