Cable type – a shielded Ethernet cable (CAT6) may be used
Maximum distance between the inverter and the router – 100 m/ 330 ft.
NOTE
If using a cable longer than 10 m / 33 ft in areas where there is
a risk of induced voltage surges by lightning, it is
recommended to use external surge protection devices.
For details refer to:
http://www.solaredge.com/files/pdfs/lightning_surge_
protection.pdf.
To connect the Ethernet cable:
1. Remove the inverter cover as described in
Opening the Inverter Cover
on page 31.
2.
Open Communication Gland 1.
CAUTION!
The gland includes a rubber waterproof fitting, which should be used to
ensure proper sealing.
3. Remove the plastic seal from one of the large openings.
4. Remove the rubber fitting from the gland and insert the CAT6 cable through the
gland and through the gland opening in the inverter.
5.
Push the cable into the cut opening of the rubber fitting.

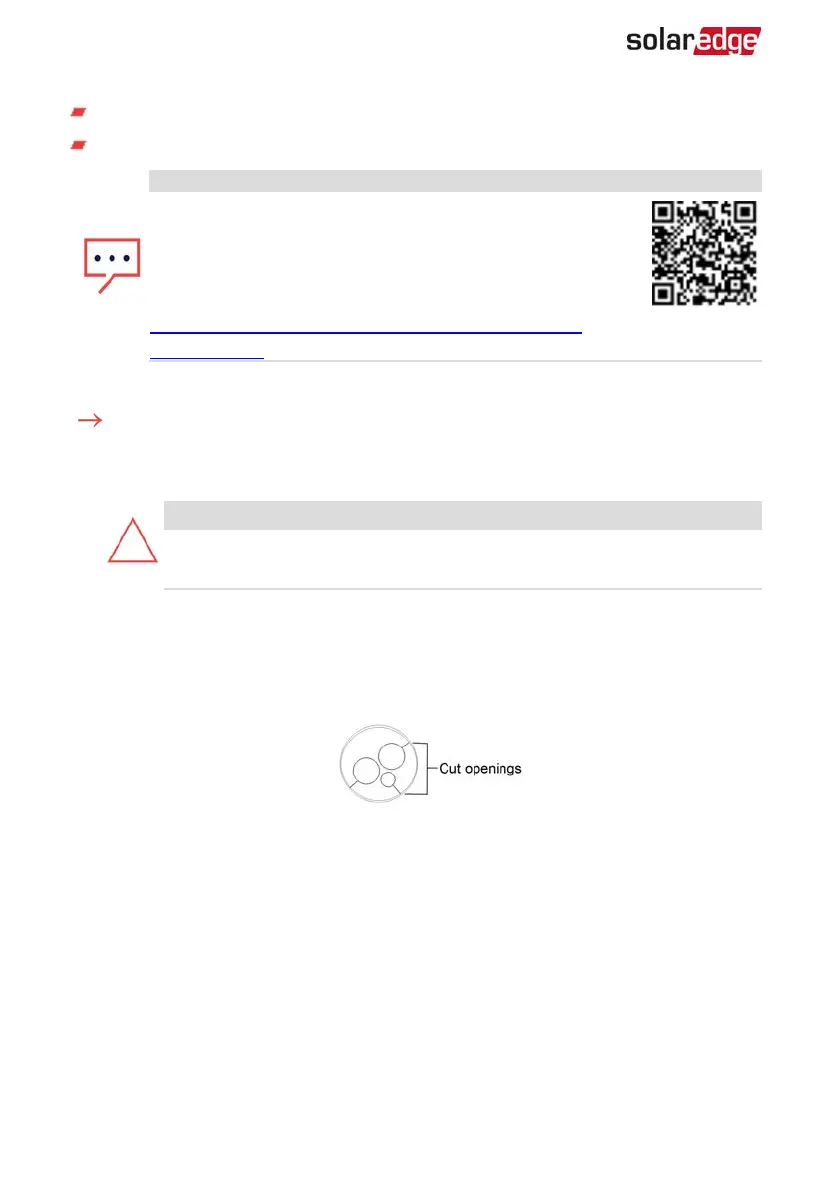

Figure 19: Rubber fitting
CAT6 standard cables have eight wires (four twisted pairs), as shown in the diagram
below. Wire colors may differ from one cable to another. You can use either wiring
standard, as long as both sides of the cable have the same pin-out and color-coding.
StorEdge Three Phase Inverter MAN-01-00648-1.3
49 Creating an Ethernet (LAN) Connection
