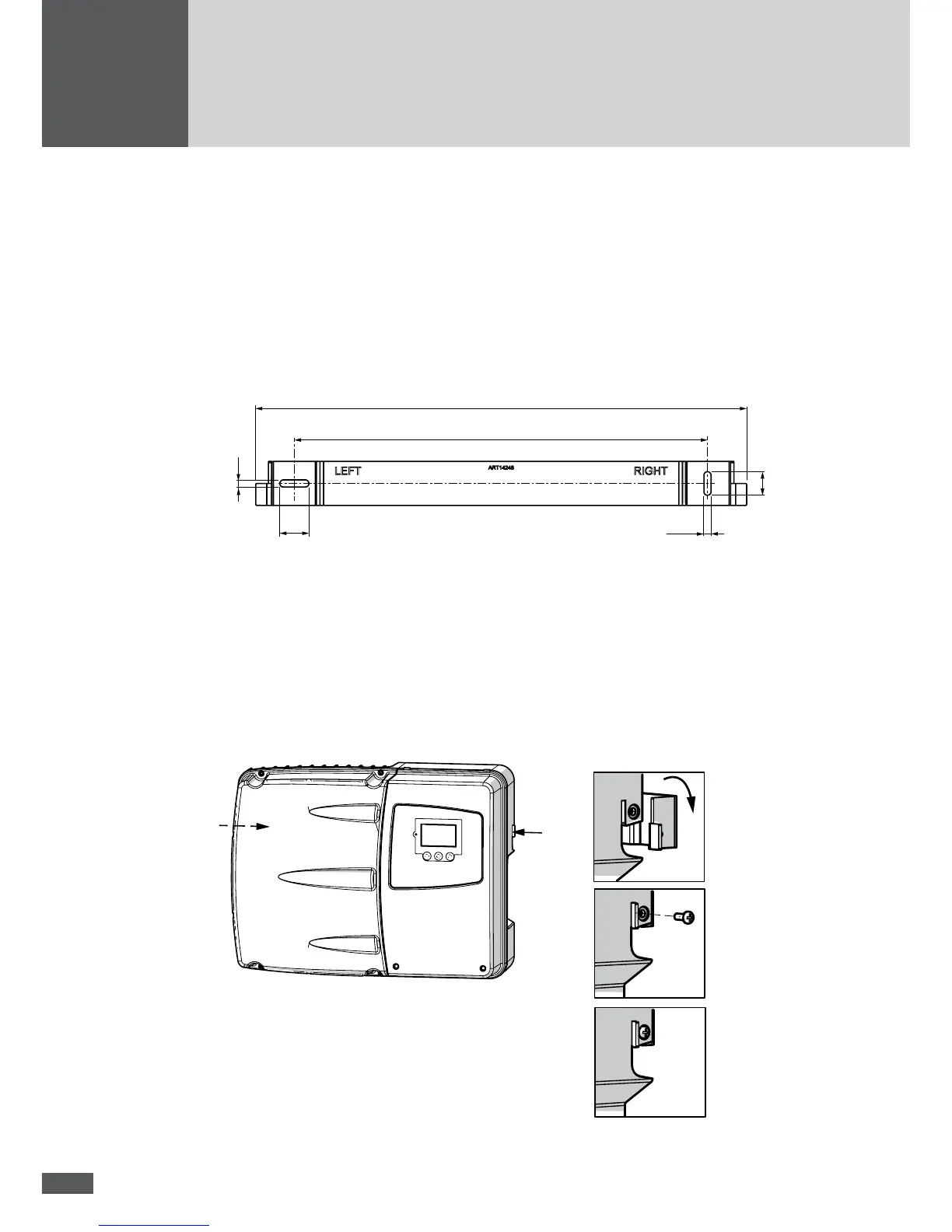

4.4 Mounting the inverter
The inverter is xed to the wall by a mounting rail. The mounting rail and the necessary
xing accessories are included in the delivery package.
Procedure
1. Use the mounting rail as a template for drilling the holes.
2. Use a spirit level to position the mounting rail horizontally.
3. Mark two drilling holes.
446
376
26
[mm]
26
6.5
6.5
– For the other measurements see section 3.4.
4. Drill two holes ø8 x 50 mm.
5. Fix the mounting rail.
– Assembly sequence: plastic dowels 8 x 40, mounting rail, M6 washers, hexagon
head wood screws 6 x 50.
6. Attach the inverter to the mounting rail (A).
7. Fix the inverter on both sides with the Phillips head sheet metal screws 4.8 x 13 (B)
and (C):
(A)
(B)
(C)
