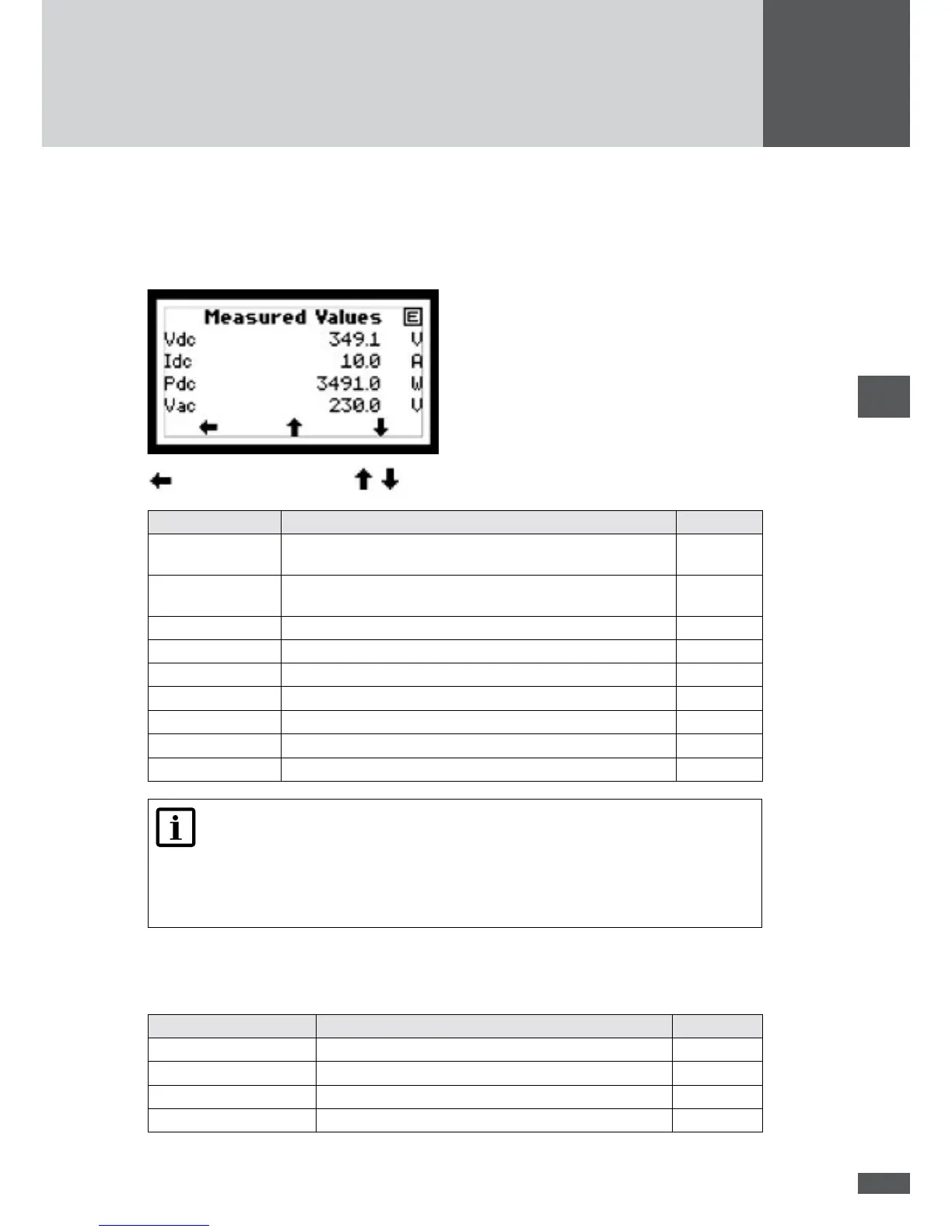

6.6 Displaying the measured values
The current measured inverter values can be accessed in the “Measured values” menu.
In the main menu, select the "Measured values" menu.
back to the main menu / scrolling measured values
Measured value Description Unit
Vdc 1, Vdc 2
Input voltage at DC terminal 1 and DC terminal 2 (when oper-
ating in single tracker mode, the DC terminal 2 = 0)
V
Idc1, Idc2
Input current to the DC terminal 1 and DC terminal 2 (when
operating in single tracker mode, the Idc2 terminal = 0)
A
Vac
Mains voltage V
Iac
Output current A
Pac
Output power W
Q
Reactive power (+: overexcited / −: underexcited) var
cosφ
Power factor (OEX: overexcited / UEX: underexcited) -
Frequency
Mains frequency Hz
Temperature
Equipment temperature °C
Note
The measured inverter values are not suitable for billing purposes or calcula-
ting the efciency. The measuring error may amount to up to ±5% depending
on the measured value. Only the measured values of a calibrated electricity
meter can be relied upon for billing purposes.
MaxTalk measured values
The following additional values can be viewed with the MaxTalk 2 service software:
Measured value Description Unit
Vac 10 min 10 minute average value of the mains voltage V
Iac mean Mean value of output current A
Ierr Ground leakage current mA
Ierr DC Leakage current mA
