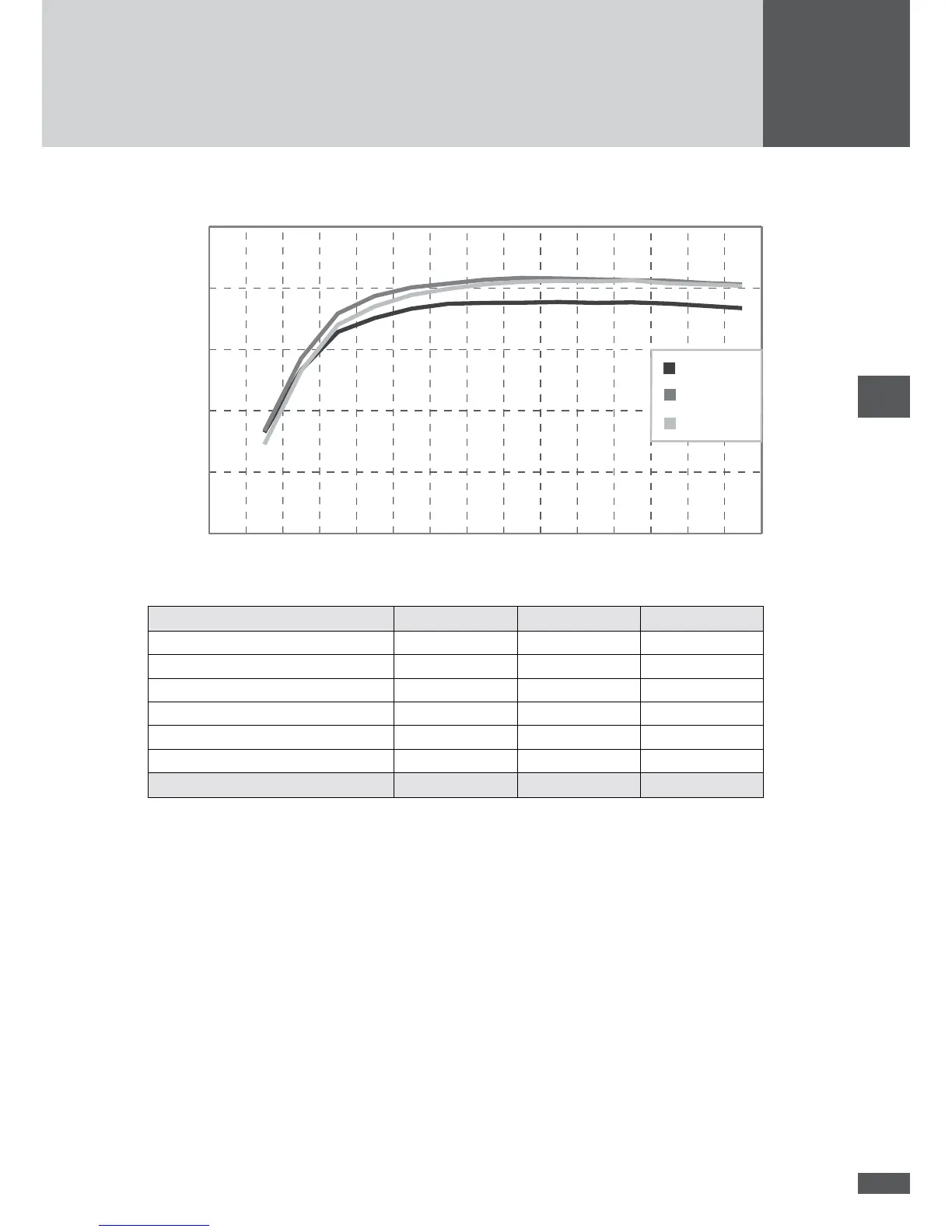

Efficiency curve SM4000P
100.0
97.5
95.0
92.5
90.0
87.5
0 5 102 15 20 25 30 40 50 7060 80 75 90 100
η 260 V DC
η 400 V DC
η 480 V DC
Standardised output Pac/Pac max [%]
Efciency η [%]
Pac/Pac max [%] η 260 V
DC
[%] η 400 V
DC
[%] η 480 V
DC
[%]
5 92.01 92.12 91.58
10 94.92 95.52 95.03
20 96.51 97.38 97.0 3
30 96.88 97.77 97.57
50 96.91 97.89 97.77
100 96.45 97.52 97.4 8
Europ. Efciency η
EU
[%]
96.50 97.42 97.25
