Mechanical Installation
7.2 Installation procedures

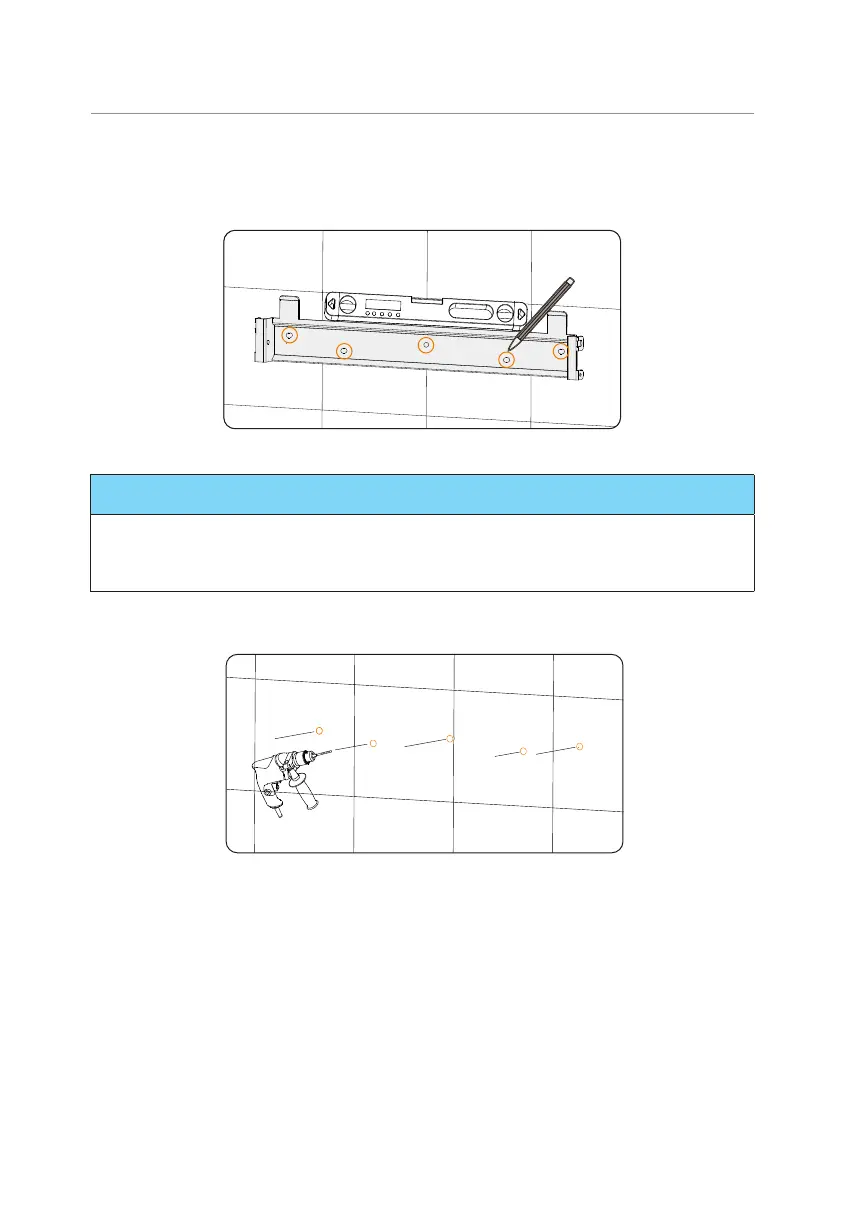

Step 1: Align the bracket horizontally on the wall and mark the position of the drill holes.
Figure 7-5 Marking the holes
NOTICE!
Take the height of the stacked battery into account when mounting the bracket.
Observe the bubble of spirit level and adjust the bracket until the bubble stays in the
middle.
Step 2: Set the bracket aside and drill holes with
Ø
12 drill bit. The depth of the holes
should be 90 mm.
Figure 7-6 Drilling holes
Step 3: Knock the expansion screws into the holes and secure the bracket to the wall
with screws by torque wrench.
