53
Electrical Connection
Wiring procedures
WARNING!
The terminal caps of unused terminals should not be removed. Keep the terminal
caps in a safe place if batteries are connected to the inverter. Reinstall the caps after
removing the connectors from terminals.
NOTICE!
The power cable of battery is in the battery accessory pack. NOT in the scope of
inverter's delivery.

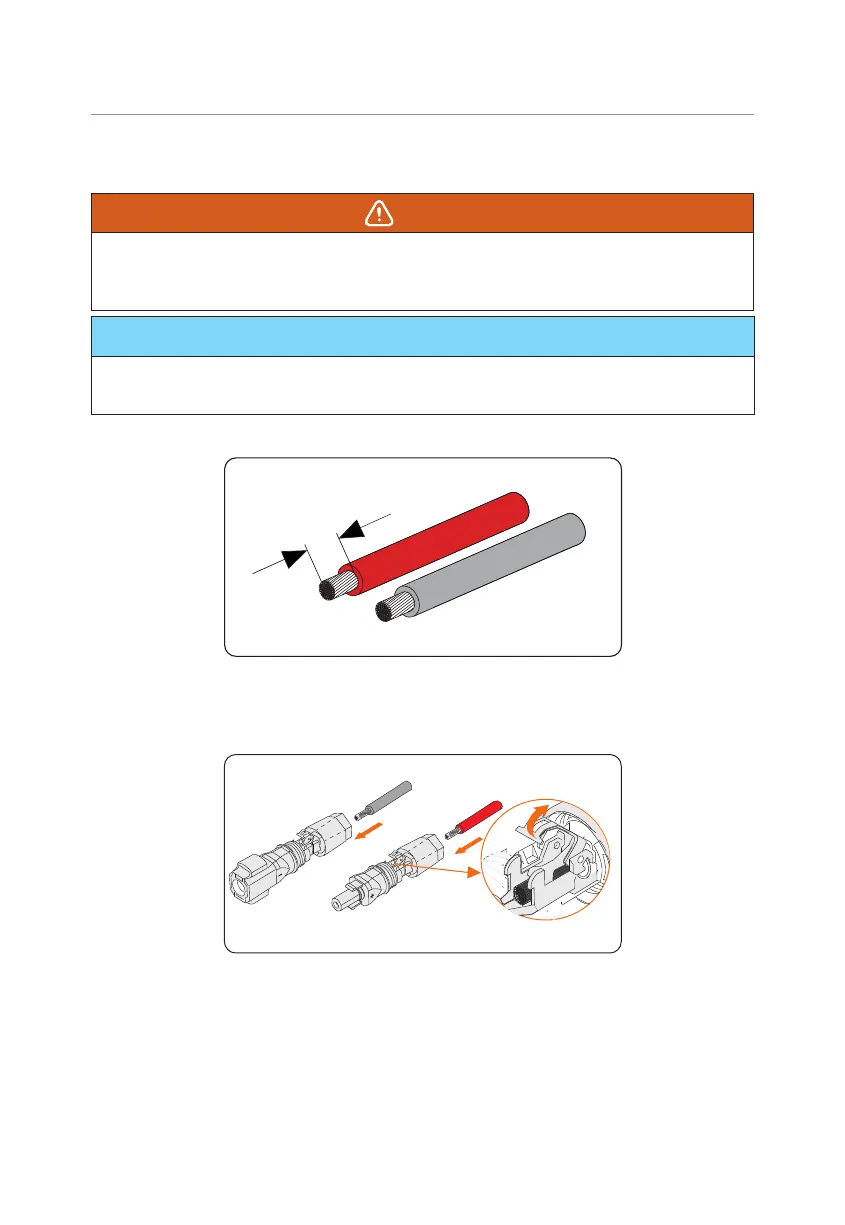

Step 1: Strip approx. 15 mm of the cable insulation.
15 mm
+
-
Figure 8-26 Striping the battery cable
Step 2: Open the spring. Carefully insert the stripped wire with twisted litz wires all the
way in. The litz wire ends have to be visible in the spring.
-
+
Figure 8-27 Opening the spring
