75
Electrical Connection
S
TA
T
SolaX Cloud
Router

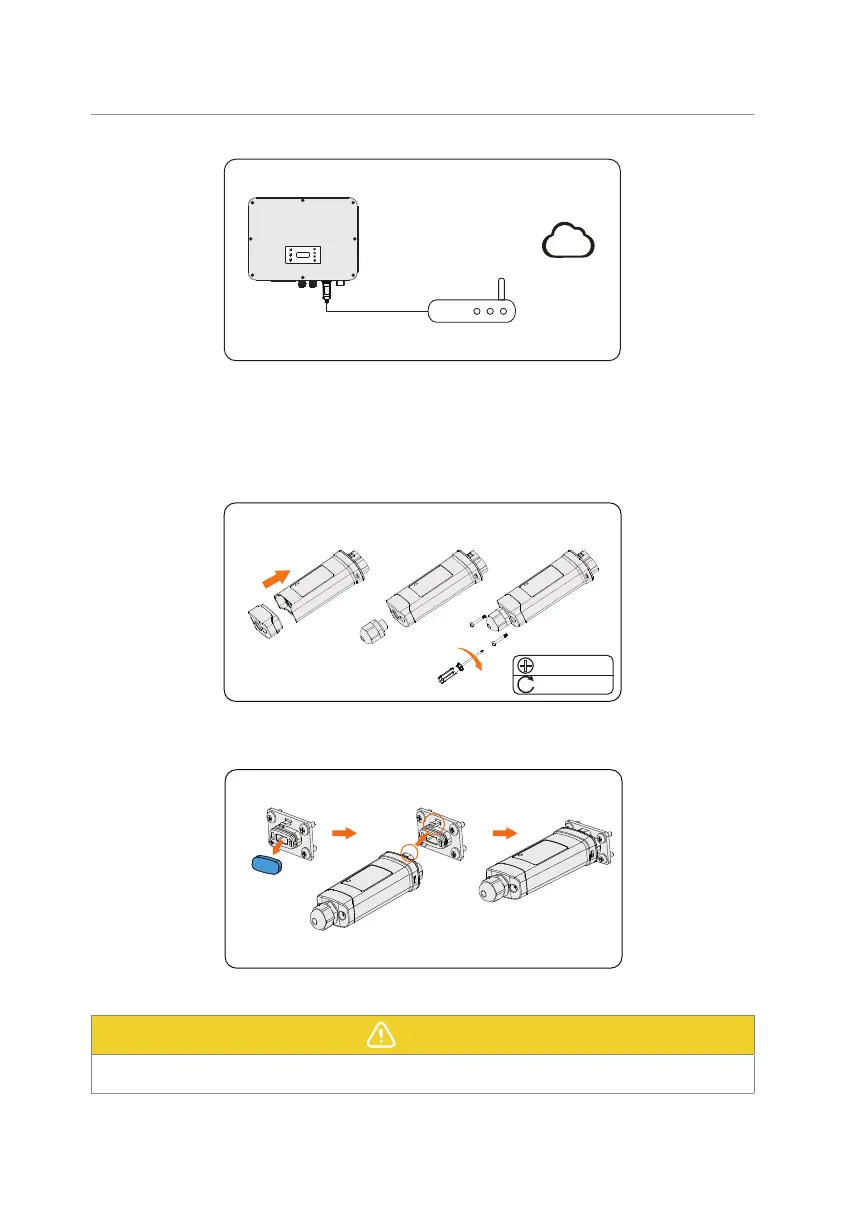

Figure 8-62
LAN mode connection diagram
Monitoring wiring procedure
Wi-Fi mode:
a.
Assemble the dongle;
M2.5
0.8 ± 0
.1 N·m
Figure 8-63
Assembling the dongle
b.
Plug the dongle to the inverter
.
Figure 8-64
Wi-Fi connection procedure
CAUTION!
•
The buckles must be on the same side. Otherwise, the dongle may be damaged.
82
84
Table of Contents
Default Chapter
6
Table of Contents
6
1 Safety
9
General Safety
9
Safety Instructions of PV, Inverter and Grid
9
Safety Instructions of PV
10
Safety Instructions of Inverter
10
Safety Instructions of Utility Grid
11
2 Product Overview
12
System Description
12
Appearance
12
Supported Power Grid
13
Symbols on the Label and Inverter
14
Working Principle
15
Circuit Diagram
15
Application Schemes
16
Working State
18
Working Mode
19
Self-Use Mode (Priority: Loads > Battery > Grid)
19
Feed-In Priority (Priority: Loads > Grid > Battery)
21
Backup Mode (Priority: Loads > Battery > Grid)
22
Peak Shaving Mode
24
TOU Mode
25
EPS Mode (Priority: Loads > Battery)
26
Manual Mode
27
Export Control Function
27
3 System Overview
29
4 Transportation and Storage
31
5 Preparation before Installation
32
Selection of Installation Location
32
Environment Requirement
32
Installation Carrier Requirement
33
Clearance Requirement
34
Tools Requirement
35
Additionally Required Materials
36
6 Unpacking and Inspection
37
Unpacking
37
Scope of Delivery
38
7 Mechanical Installation
40
Dimensions for Mounting
41
Installation Procedures
42
8 Electrical Connection
45
Terminals of Inverter
45
PE Connection
46
AC Connection
49
PV Connection
53
Battery Power Cable Connection
57
COM 1 Communication Connection
64
Pin Assignment of COM 1 Terminal
64
Parallel Communication Connection
65
BMS Communication Connection
68
RS485 Communication Connection
70
DRM Connection (Applicable to AS/NZS 4777)
71
COM 2 Communication Connection
73
Pin Assignment of COM 2 Terminal
73
Meter/Ct Connection
74
Ripple Control Communication Connection
79
DIO Communication Connection
80
Monitoring Connection
82
9 System Commissioning
85
Checking before Power-On
85
Powering on the System
85
Operation of Lockable DC Switch
86
10 Operation on LCD
88
Introduction of Control Panel
88
Introduction of Menu Interface
89
System ON/OFF
92
Mode Select
92
System Status
92
History Data
94
Setting
96
User Setting
96
Advanced Setting
104
About
118
11 Operation on Solax Cloud App
120
Introduction of Solax Cloud App
120
Downloading and Installing App
120
Operation Guide on Solaxcloud Web
121
12 Troubleshooting and Maintenance
122
Power off
122
Troubleshooting
122
Maintenance
131
Maintenance Routines
131
Replacement of Fans
132
Upgrading Firmware
133
13 Decommissioning
135
Disassembling the Inverter
135
Packing the Inverter
138
Disposing of the Inverter
138
14 Technical Data
139
15 Appendix
143
Generator Application
143
Adapter Box Application
148
EV-Charger Application
151
Datahub Application
154
Micro-Grid Application
157
Parallel Application
163
