5. Installation
5.1 Check for Transport Damage
Make sure the inverter is intact during transportation. If there are some
visible damages, such as cracks, please contact your dealer immediately.

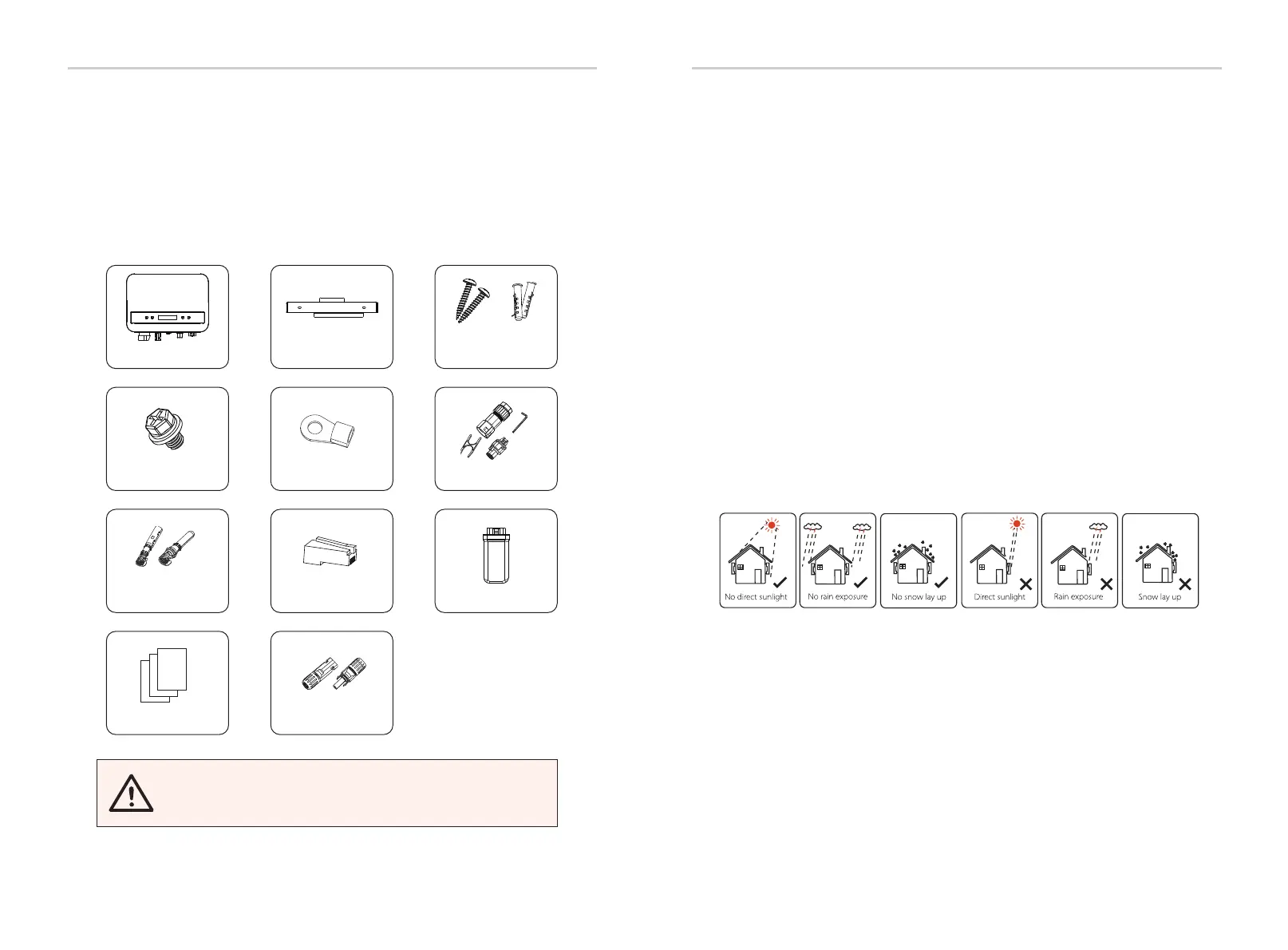

5.2 Packing Lists
Open the package and fetch out the product, check the accessories at
first. The packing list is shown as below.
NOTE!
For the optional accessories, please be subject to the actual
delivery.
Inverter × 1
Bracket × 1
(Expansion tube,
self-tapping screw) × 2
M5*L8 screw × 11
Earth terminal × 1
AC connector × 1
DC pin contact (1 ×
positive, 1 × negative)
RJ45 terminal × 1
Dongle (optional) × 1
Documents
Female DC unit × 1;
Male DC unit × 1
5.3 Installation Precaution
The inverter is designed for outdoor installation (IP 66).
Make sure the installation site meets the following conditions:
Avoid exposure to glare.
Avoid placing in areas where highly flammable materials are stored.
Avoid placing in potential explosive areas.
Avoid placing near the television antenna or antenna cable.
Avoid placing in an altitude of higher than 4000 m above sea level.
Avoid placing in environment of precipitation or humidity (100%).
Be sure the ventilation is good enough.
The ambient temperature in the range of -30℃ to +70℃.
The slope of the wall should be within ±5°.
The wall hanging the inverter should meet conditions below:
1) Solid brick/concrete, or strength equivalent mounting surface;
2) Inverter must be supported or strengthened if the wall's strength isn't
enough (such as wooden wall, the wall covered by thick layer of decoration)
Please avoid direct sunlight, rain exposure, snow laying up during installing
and operating.
