Introduction Introduction
12 13

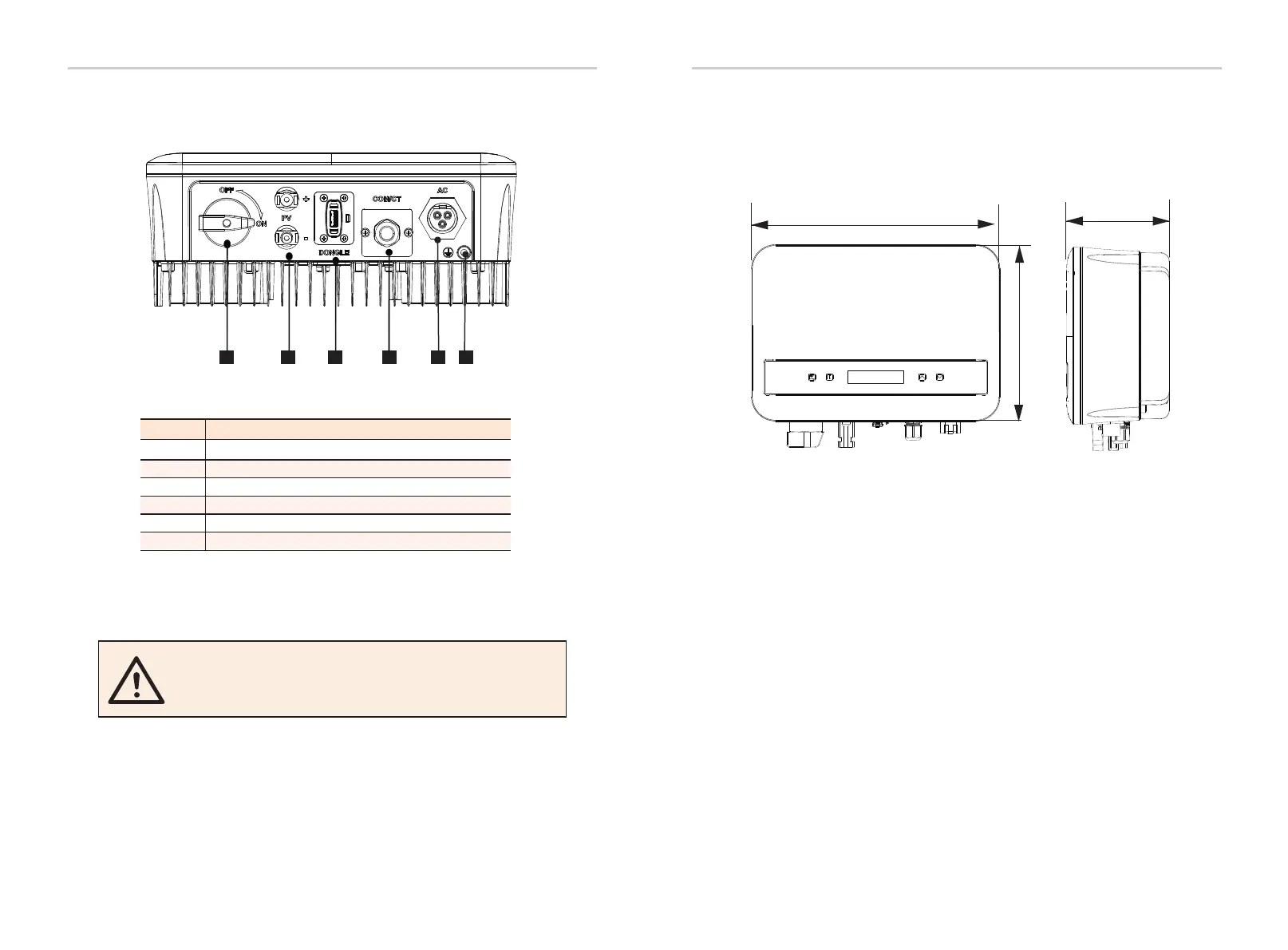

3.3 Dimension
Dimension
290 mm
206 mm
120 mm
3.2 Terminals of the Inverter
A B C D
Object
A DC switch
DC input terminal
Dongle
B
C
D
E
F
Description
AC output terminal
Ground terminal
COM/CT
E F
Note: CT and meter is opptional. If necessary, please consult us in detail.
WARNING!
Only authorized personnel are allowed to set the connection.

Table of Contents

Other manuals for Solax X1 Series

Preview: Quick Installation Guide
Quick Installation Guide3 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Solax X1 Series and is the answer not in the manual?

Solax X1 Series Specifications

General IconGeneral
Number of MPPTs2
Protection RatingIP65
Max. DC Voltage550V
Max. PV Input Voltage550V
Max. PV Input Power6000W
Max. Input Current11A
Rated Output Power5000W
Max. Output Power5500W
Nominal Output Voltage230V
Output Frequency50Hz/60Hz
European Efficiency97.0%
Weight18kg
Operating Temperature-25°C to 60°C
CoolingNatural
CommunicationWiFi
