SOLE E25 - Handlebar Assembly

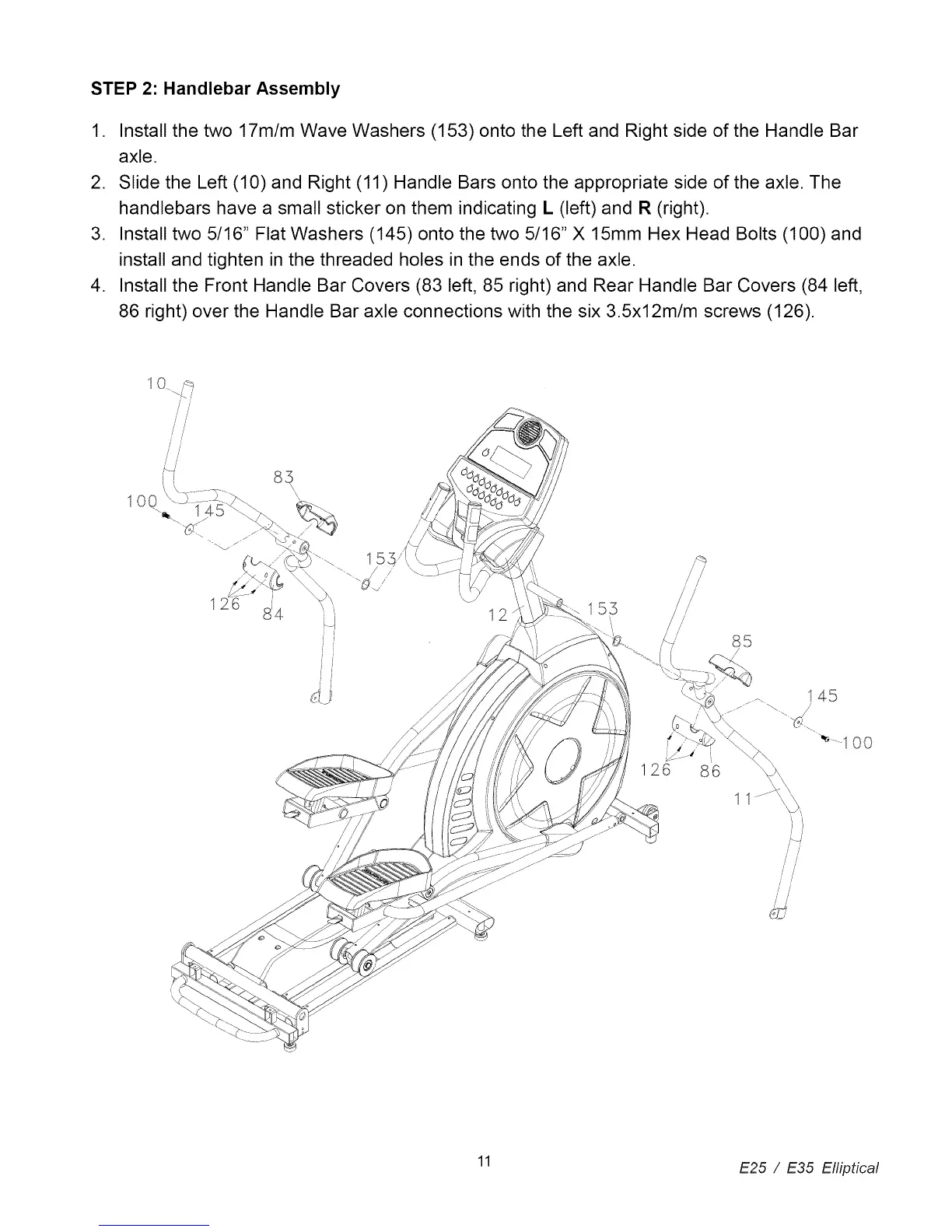

STEP 2: Handlebar Assembly
1. Install the two 17m/m Wave Washers (153) onto the Left and Right side of the Handle Bar
axle.
2. Slide the Left (10) and Right (11) Handle Bars onto the appropriate side of the axle. The
handlebars have a small sticker on them indicating L (left) and R (right).
3. Install two 5/16" Flat Washers (145) onto the two 5/16" X 15mm Hex Head Bolts (100) and
install and tighten in the threaded holes in the ends of the axle.
4. Install the Front Handle Bar Covers (83 left, 85 right) and Rear Handle Bar Covers (84 left,
86 right) over the Handle Bar axle connections with the six 3.5x12m/m screws (126).
10.
//
//' /
/ /'
i i
i i
i
l i
1,00 i
/
I26
\
12
153
126 86
85
/
i45
100
/
i / /
// /
/ /
/ /
11 E25 I E35 Elliptical
