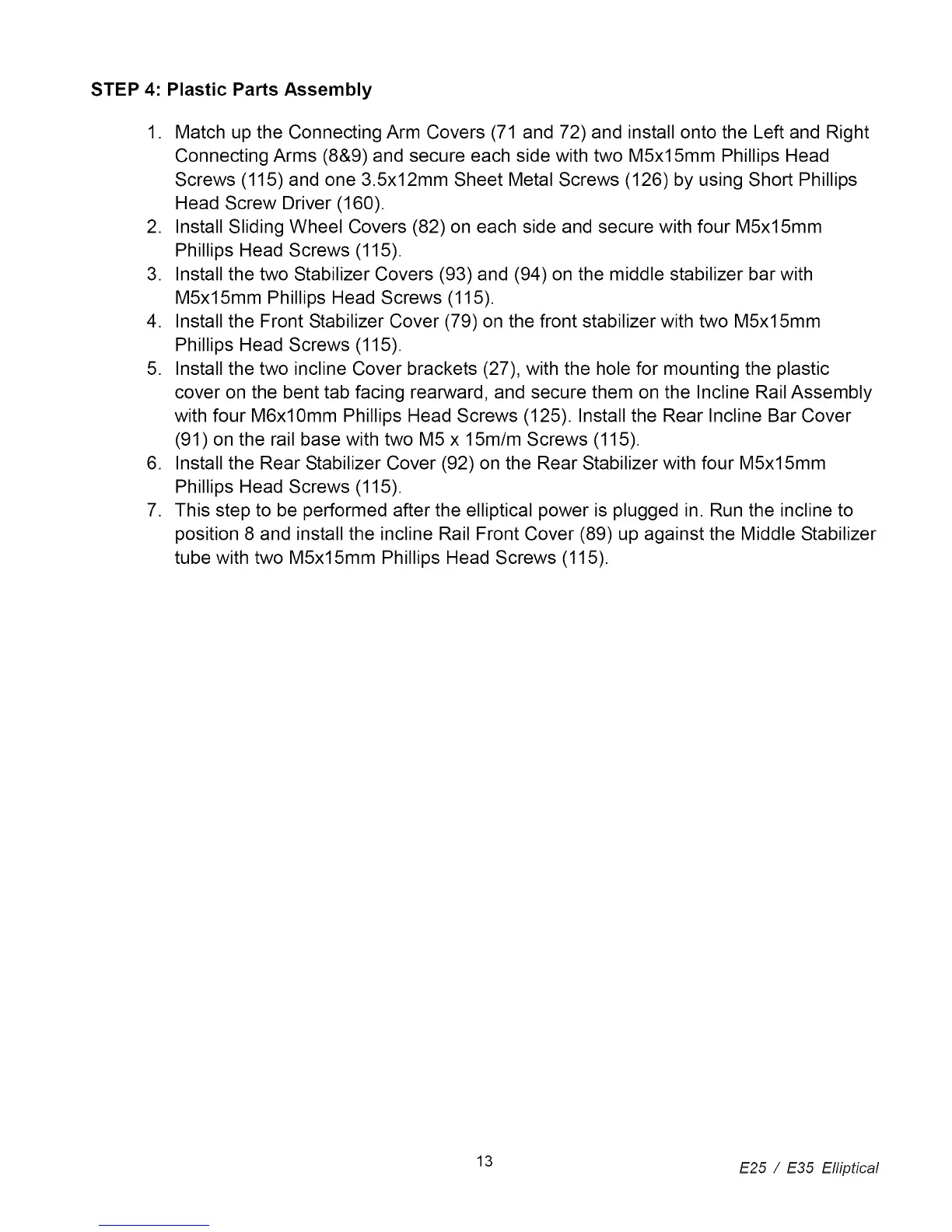

STEP 4: Plastic Parts Assembly
1. Match up the Connecting Arm Covers (71 and 72) and install onto the Left and Right
Connecting Arms (8&9) and secure each side with two M5x15mm Phillips Head
Screws (115) and one 3.5x12mm Sheet Metal Screws (126) by using Short Phillips
Head Screw Driver (160).
2. Install Sliding Wheel Covers (82) on each side and secure with four M5x15mm
Phillips Head Screws (115).
3. Install the two Stabilizer Covers (93) and (94) on the middle stabilizer bar with
M5x15mm Phillips Head Screws (115).
4. Install the Front Stabilizer Cover (79) on the front stabilizer with two M5x15mm
Phillips Head Screws (115).
5. Install the two incline Cover brackets (27), with the hole for mounting the plastic
cover on the bent tab facing rearward, and secure them on the Incline Rail Assembly
with four M6xl0mm Phillips Head Screws (125). Install the Rear Incline Bar Cover
(91) on the rail base with two M5 x 15m/m Screws (115).
6. Install the Rear Stabilizer Cover (92) on the Rear Stabilizer with four M5x15mm
Phillips Head Screws (115).
7. This step to be performed after the elliptical power is plugged in. Run the incline to
position 8 and install the incline Rail Front Cover (89) up against the Middle Stabilizer
tube with two M5x15mm Phillips Head Screws (115).
13 E25 / E35 Elliptical
