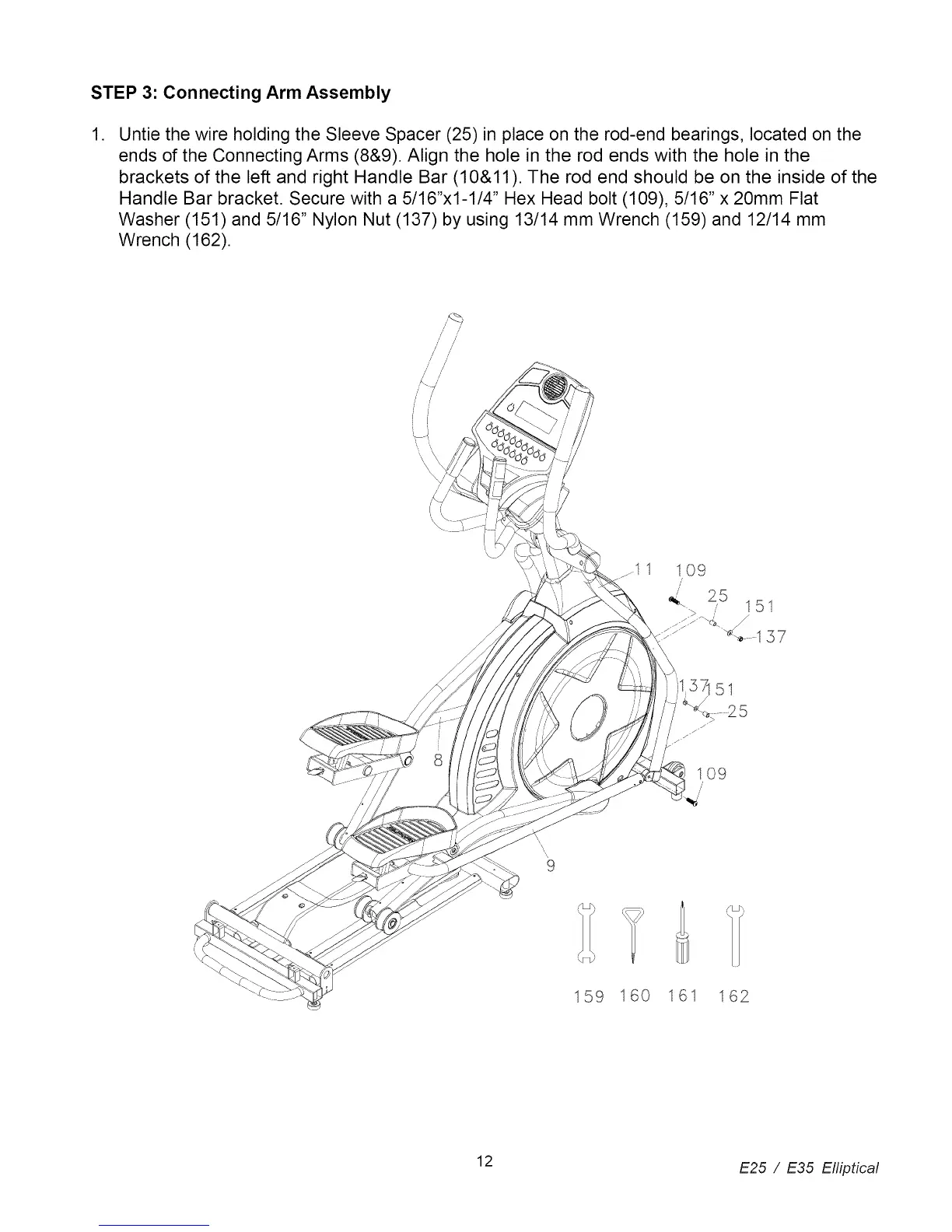

STEP 3: Connecting Arm Assembly
.
Untie the wire holding the Sleeve Spacer (25) in place on the rod-end bearings, located on the
ends of the Connecting Arms (8&9). Align the hole in the rod ends with the hole in the
brackets of the left and right Handle Bar (10&11). The rod end should be on the inside of the
Handle Bar bracket. Secure with a 5/16"x1-1/4" Hex Head bolt (109), 5/16" x 20mm Flat
Washer (151) and 5/16" Nylon Nut (137) by using 13/14 mm Wrench (159) and 12/14 mm
Wrench (162).
109
/'
//
159 160 161 162=
12 E25 / E35 Elliptical
