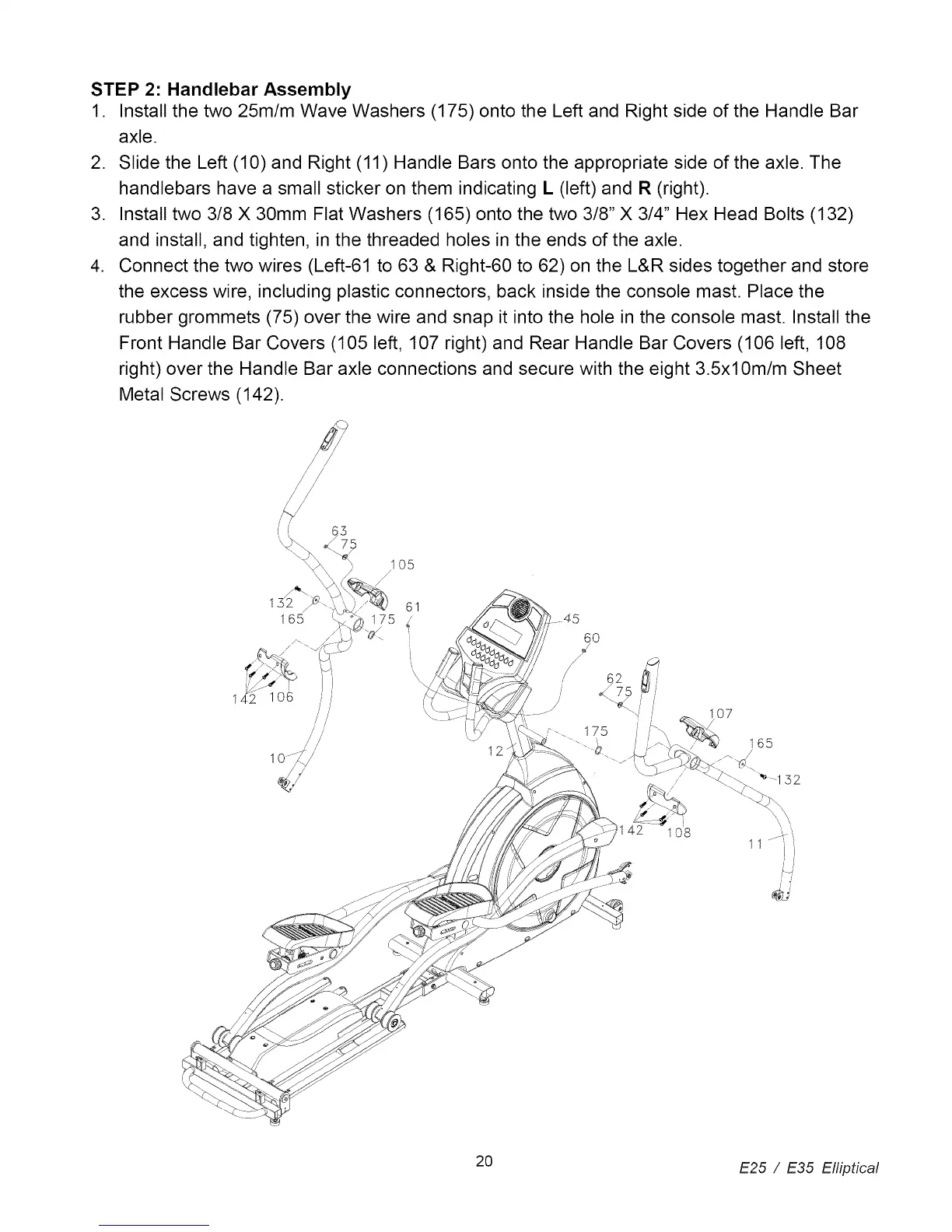

STEP 2: Handlebar Assembly
1. Install the two 25m/m Wave Washers (175) onto the Left and Right side of the Handle Bar
axle.
2. Slide the Left (10) and Right (11) Handle Bars onto the appropriate side of the axle. The
handlebars have a small sticker on them indicating L (left) and R (right).
3. Install two 3/8 X 30mm Flat Washers (165) onto the two 3/8" X 3/4" Hex Head Bolts (132)
and install, and tighten, in the threaded holes in the ends of the axle.
4. Connect the two wires (Left-61 to 63 & Right-60 to 62) on the L&R sides together and store
the excess wire, including plastic connectors, back inside the console mast. Place the
rubber grommets (75) over the wire and snap it into the hole in the console mast. Install the
Front Handle Bar Covers (105 left, 107 right) and Rear Handle Bar Covers (106 left, 108
right) over the Handle Bar axle connections and secure with the eight 3.5xl0m/m Sheet
Metal Screws (142).
165
I05
z/
/
61
I75
6O
/ /
1 ....._ /
175
107
165
_ 152
20 E25 / E35 Elliptical
