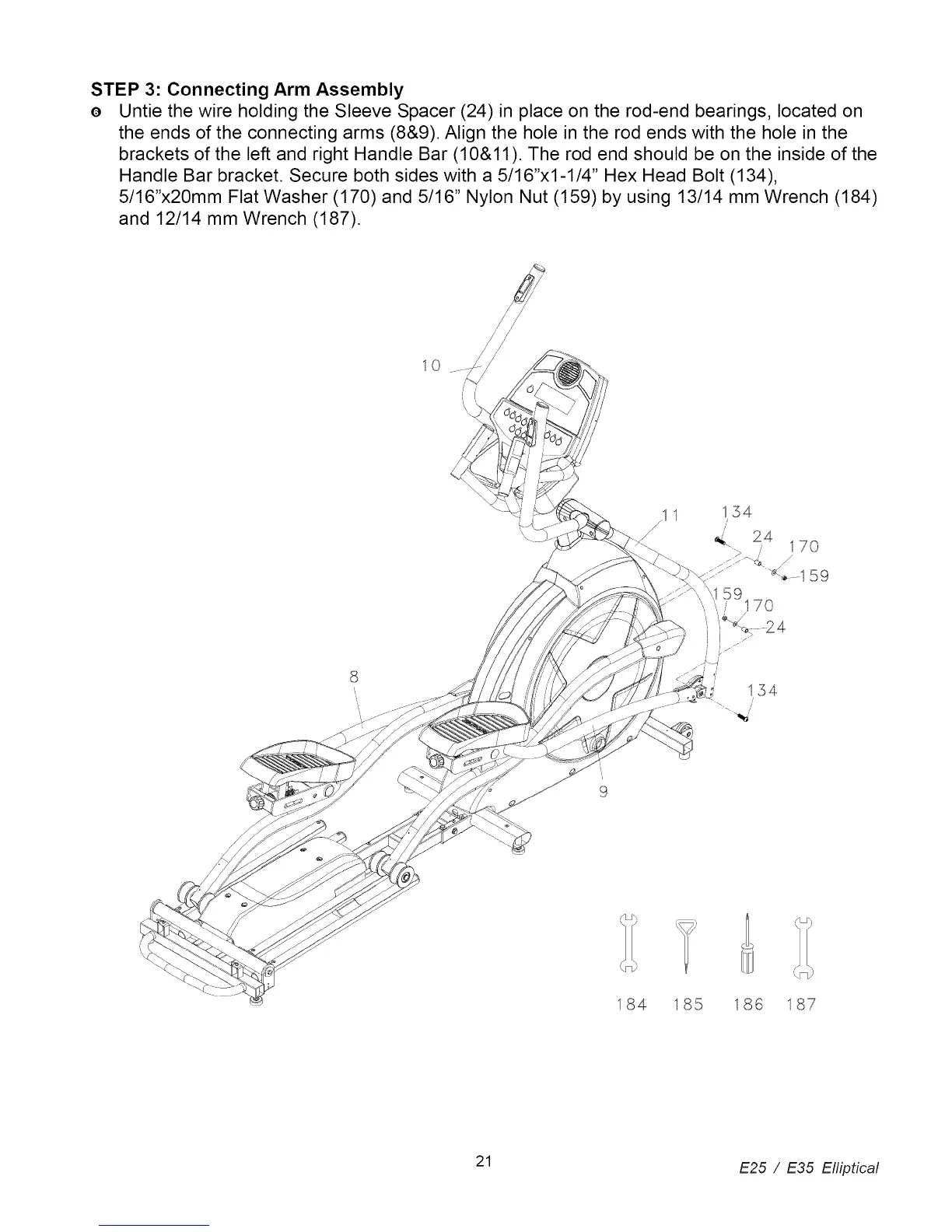

STEP 3: Connecting Arm Assembly
o Untie the wire holding the Sleeve Spacer (24) in place on the rod-end bearings, located on
the ends of the connecting arms (8&9). Align the hole in the rod ends with the hole in the
brackets of the left and right Handle Bar (10&11). The rod end should be on the inside of the
Handle Bar bracket. Secure both sides with a 5/16"x1-1/4" Hex Head Bolt (134),
5/16"x20mm Flat Washer (170) and 5/16" Nylon Nut (159) by using 13/14 mm Wrench (184)
and 12/14 mm Wrench (187).
10
f
J' i
59'
J 170
9
185 186 187
21 E25 / E35 Elliptical
