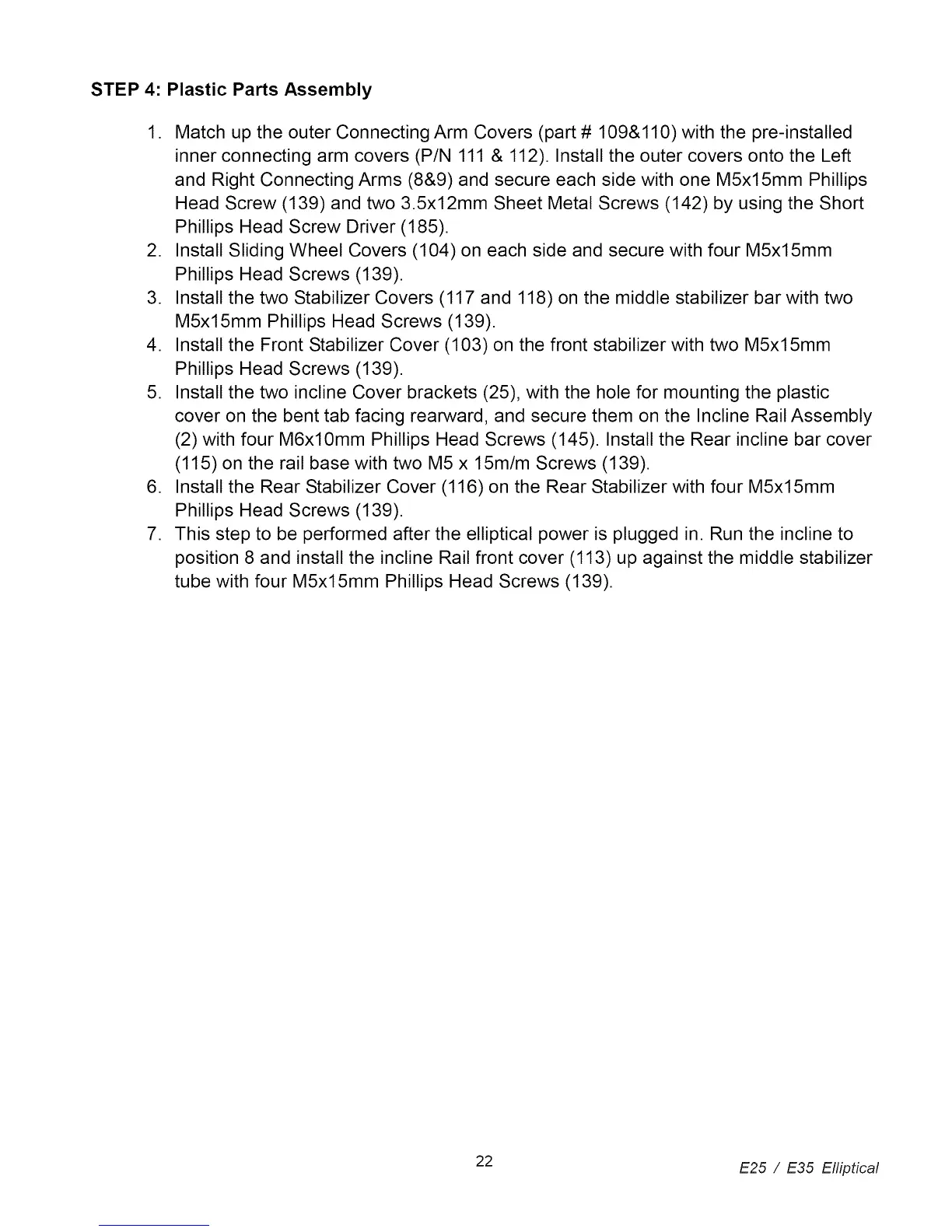

STEP 4: Plastic Parts Assembly
1. Match up the outer Connecting Arm Covers (part # 109&110) with the pre-installed
inner connecting arm covers (P/N 111 & 112). Install the outer covers onto the Left
and Right Connecting Arms (8&9) and secure each side with one M5x15mm Phillips
Head Screw (139) and two 3.5x12mm Sheet Metal Screws (142) by using the Short
Phillips Head Screw Driver (185).
2. Install Sliding Wheel Covers (104) on each side and secure with four M5x15mm
Phillips Head Screws (139).
3. Install the two Stabilizer Covers (117 and 118) on the middle stabilizer bar with two
M5x15mm Phillips Head Screws (139).
4. Install the Front Stabilizer Cover (103) on the front stabilizer with two M5x15mm
Phillips Head Screws (139).
5. Install the two incline Cover brackets (25), with the hole for mounting the plastic
cover on the bent tab facing rearward, and secure them on the Incline Rail Assembly
(2) with four M6xl0mm Phillips Head Screws (145). Install the Rear incline bar cover
(115) on the rail base with two M5 x 15m/m Screws (139).
6. Install the Rear Stabilizer Cover (116) on the Rear Stabilizer with four M5x15mm
Phillips Head Screws (139).
7. This step to be performed after the elliptical power is plugged in. Run the incline to
position 8 and install the incline Rail front cover (113) up against the middle stabilizer
tube with four M5x15mm Phillips Head Screws (139).
22 E25 / E35 Elliptical
