User Manual
NOTE
After crimping the terminal to the wire, inspect the connection to ensure the
terminal is solidly crimped to the wire.
5. Remove the M10 screw from the heat sink ground point.

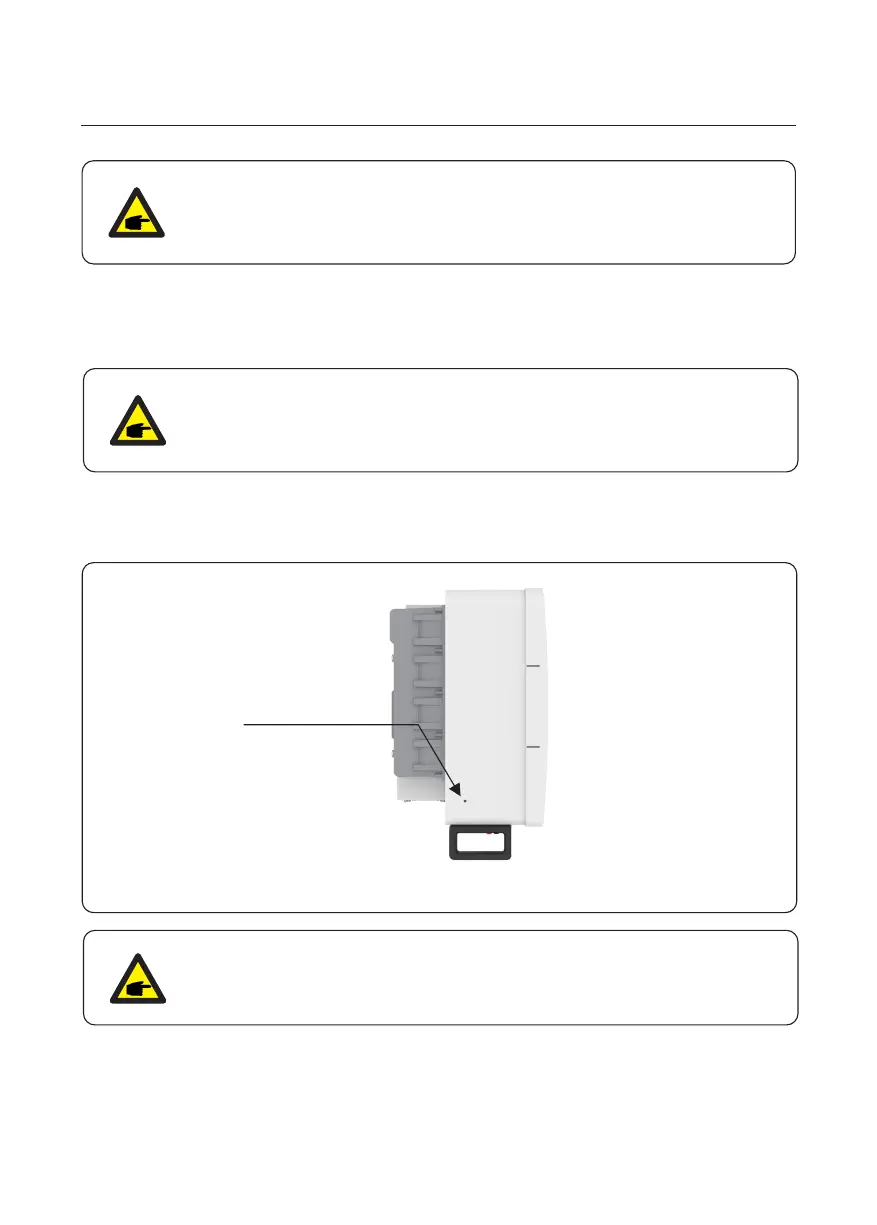

Figure 3.19 Fixed cable
To reduce corrosion, apply silicone or paint to the screw after ground cable
has been installed.
NOTE
4. Insert the stripped wire into the OT terminal crimping area and crimp with a hydraulic
crimp tool. (see Figure 3.18)
6. Connect the grounding cable to the grounding point on the heat sink, and tighten the
grounding screw, Torque is 4.4-6.0 ft.lbs. (see figure 3.19)
3. Installation
21
NOTE
B (insulation stripping length) is 2mm-3mm longer than A (OT cable
terminal crimping area).
Grounding screw
Torque：4.6-6.0 ft.lbs
To Next Page
