3. Installation
25
Table 3.2 Rating of grid OCPD
Inverter
Rated
voltage(Vac)
Max. output
current (Amps)
Recommended current
range for OCPD (A)
S6-GC25K-US
S6-GC33K-US
S6-GC36K-US
S6-GC40K-US
S6-GC50K-US
S6-GC60K-US
S6-GC30K-LV-US
33.1
43.7
47.6
52.9
66.2
79.4
83.3
480
480
480
480
480
480
208
50
65
65
85
85-100
100-125
125
NOTE
Inverter OCPD must be selected in accordance with National Electrical Code®
ANSI/NFPA 70 or the Canadian Electrical Code® CSA C22.1. Operating
ambient temperature and humidity must be factored and considered when
selecting OCPD for the inverter output.
3.4.3.1 Aluminum Cable Requirements
When Aluminum cable is selected, use copper to aluminum adapter terminal to avoid direct
contact between the copper bar and the aluminum cable. Direct contact between the copper
bar and aluminum cable will cause electro mechanical corrosion and impair the reliability of
the electrical connection. When using aluminum/copper wire rated lug, no additional adapters
are required.
Aluminum adapter
terminal
Aluminum adapter
terminal
Aluminum cable Aluminum cable

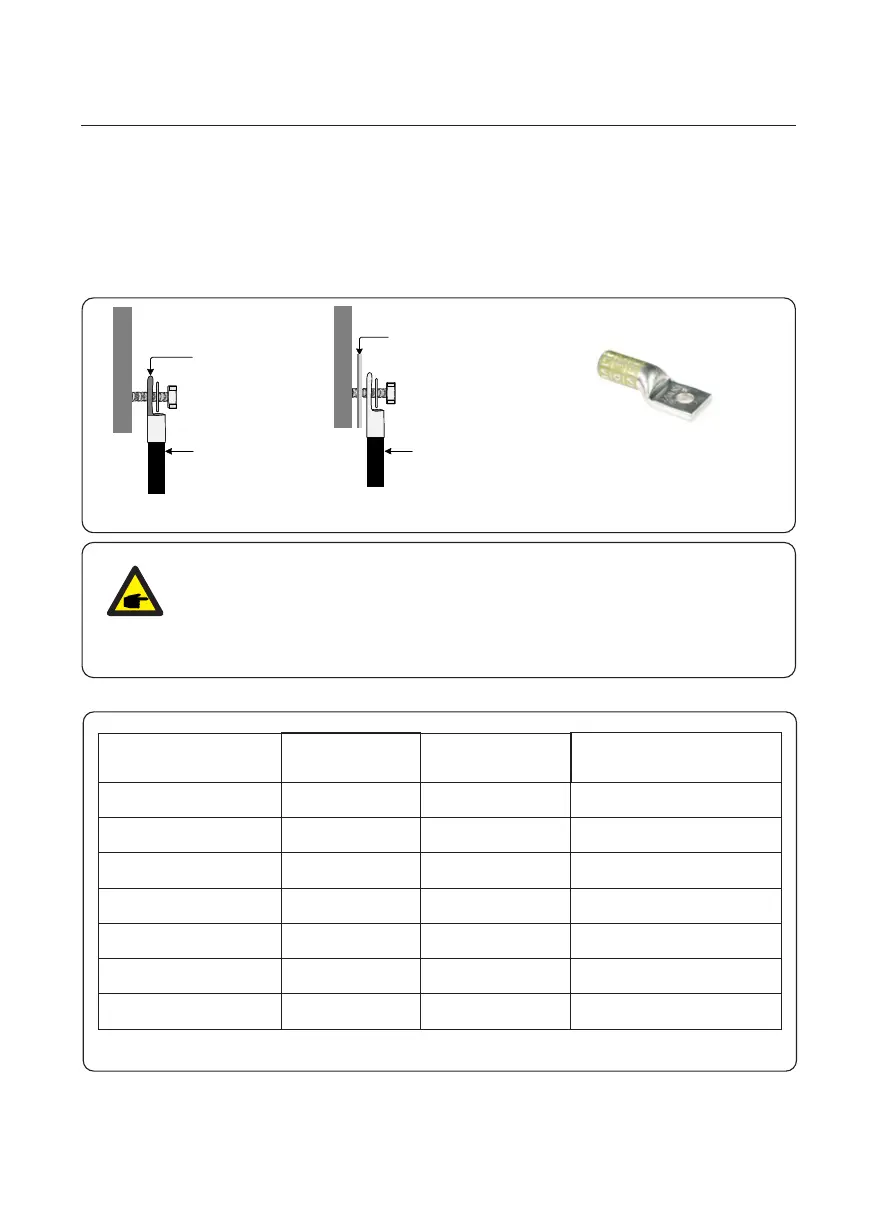

Figure 3.26 Aluminum cable
Designed for use with both
aluminum and copper conductors
