Solplanet SOL APOLLO Series - LED Indicators and Interfaces

26 UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523

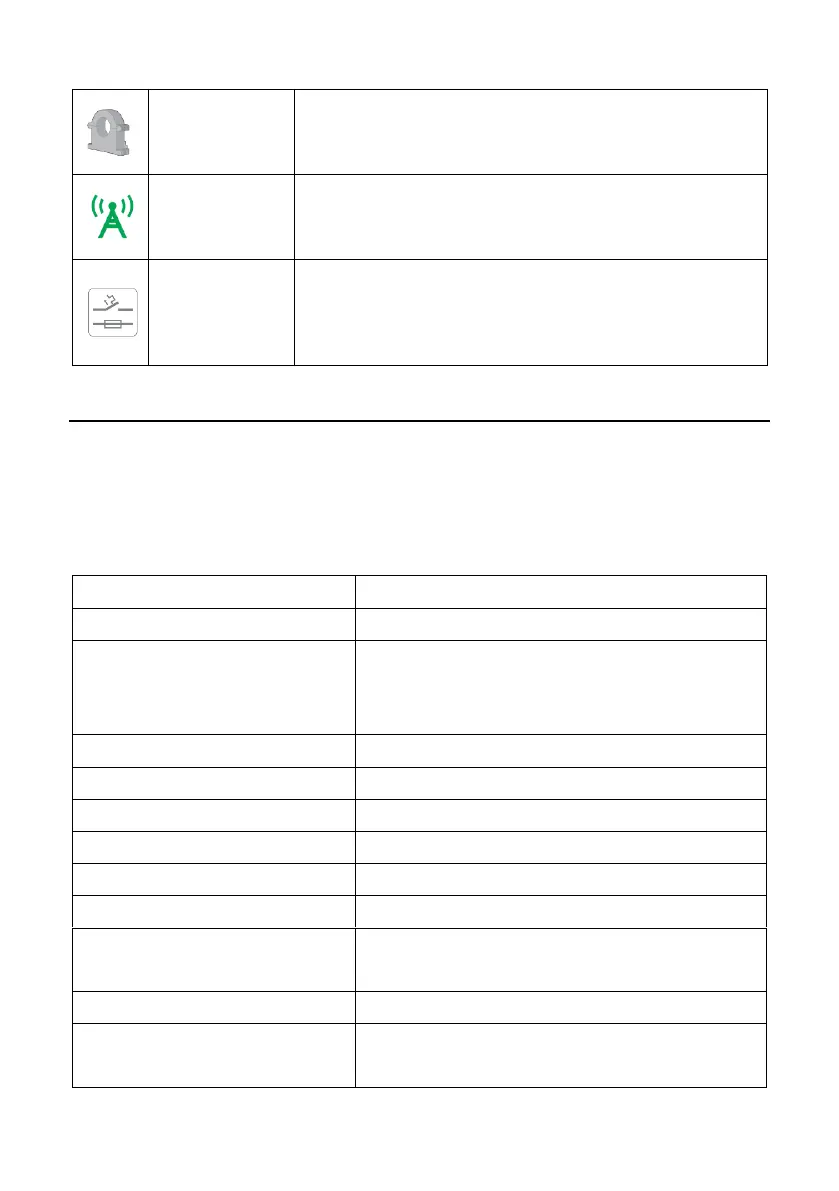

CT
Current transformer.
Cellsite
Communication base station.
Protective
device
Protective device with RCD and LSS.
4.3 LED Indicators
The EV charger is equipped with one LED strip which provides information
about the various operating states represented by four colours.
Explanation of the different light signals:
Sheet 7
LEDs Status
EV Charger Status
Green - solid
Standby
Ice blue - solid
- Connected to vehicle and ready to charge
- End of charging
- Charging paused
Blue - pulsing
Charging
Green - pulsing
Charging (with full green power)
Ice blue - pulsing
Charging (mix of grid/green power)
Yellow-solid
E-LOCK
Red - blinking
Fault
Purple - blinking
Firmware update
Ice blue - blinking (once)
RFID card identification succeeded (with
operation)
Ice blue - blinking (twice)
RFID card binding succeeded
Purple - blinking (once)
RFID card identification succeeded (without
operation)
