Cleaning and maintenance
11/2014 1015420-00 Operating instructions – 39/78
– Replace and retighten the screws.

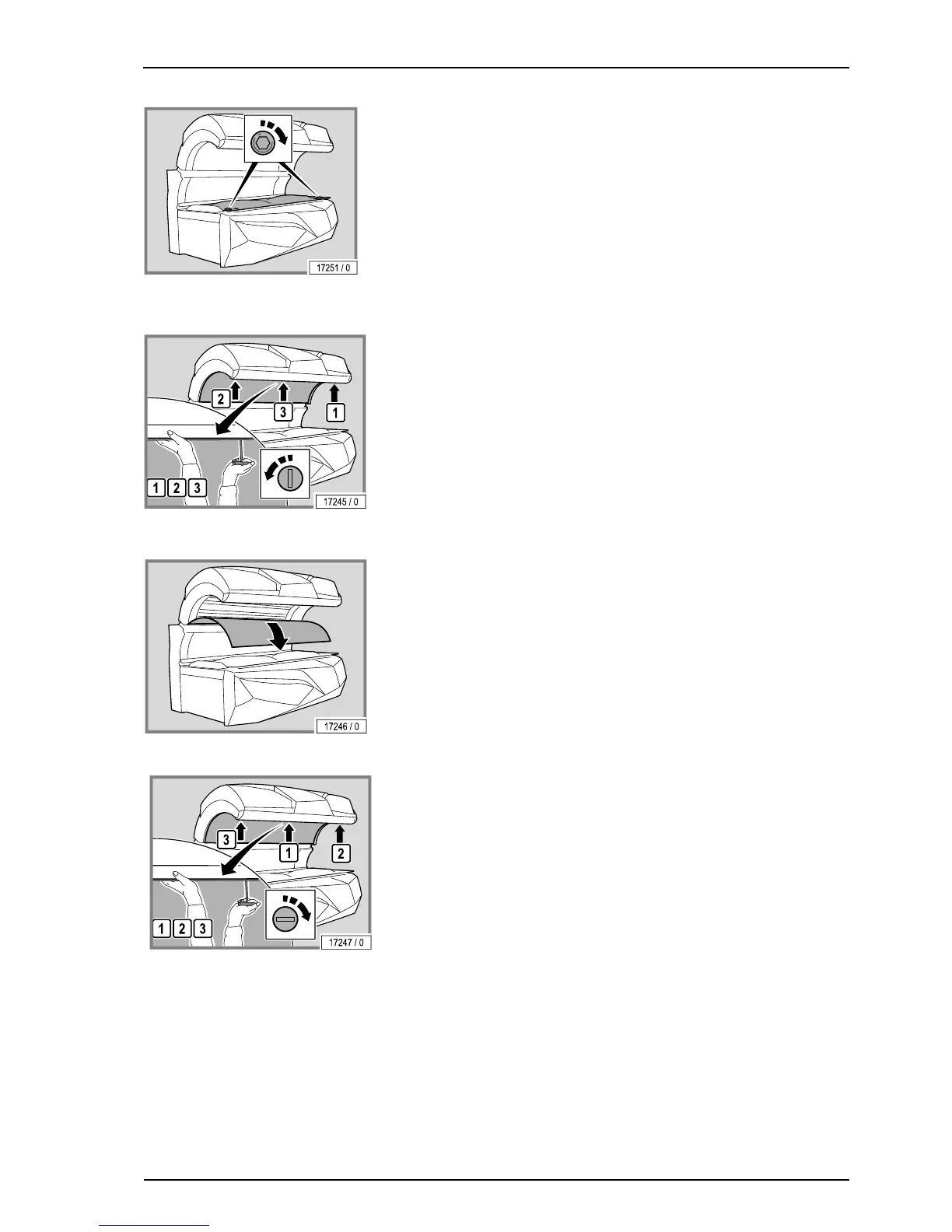

7.7.2 Remove the canopy panel
– Turn the locks through 90°: first the outer locks, then the lock in the mid-
dle.
– Support the canopy panel with one hand so that it does not fall down.
– Carefully lower the canopy panel on the scratch protection (service kit).
The assembly is the same process in reverse order.
When assembling the device please note:
– Support the canopy panel with one hand so that it does not fall down.
– Replace and retighten the screws. Replace the middle screw first and
then the outer screws.
– Remove fingerprints and other soiling carefully.
