8.3 Lamp configuration
CAUTION!
The use of other UV lamps and filter panels voids the
operating license!
8.3.1 Type 155023316XXXXXX35
Installed lamps

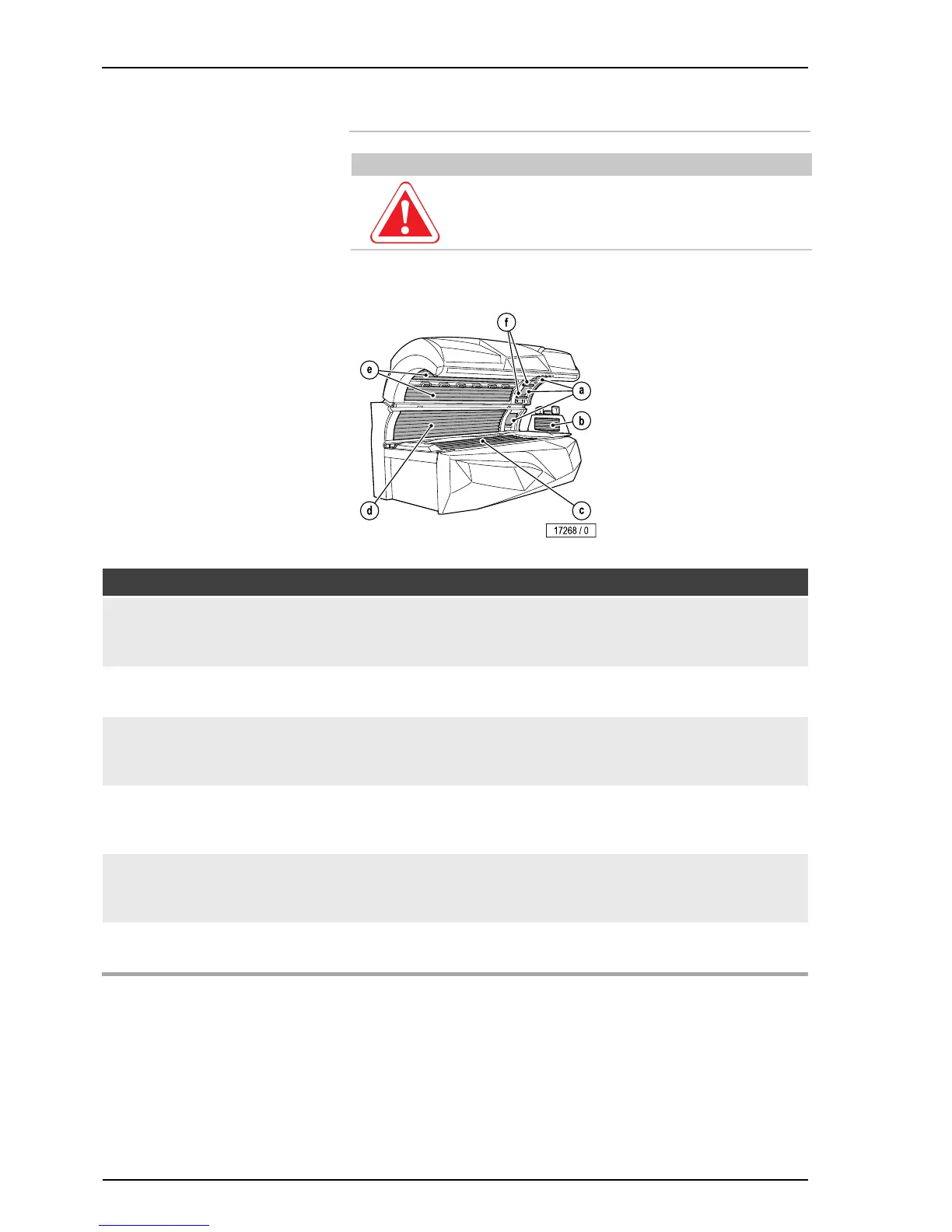

Number Description Length Power Control Order no.
a) 3
3
UV high pressure lamps Ergoline ULTRA
C12645
Filter panels Ultra Performance
520 W 420 W / 360 W /
260 W / 0 W
12645-..
1001524-..
b) 7
7
UV low pressure lamps Genesis VHP12 25W
Starter S10 (4-65 W)
21 in
0.52 m
25 W 25 W 1015623-..
10047-..
c) 18
18
UV low pressure lamps Genesis VHP12
160 W
Starter (120-180 W)
71 in
1.80 m
160 W 160 W 1508603-..
12637-..
d) 8
8
UV low pressure lamps Genesis VHP12
160 W
Starter (120-180 W)
71 in
1.80 m
160 W 160 W 1508603-..
12637-..
e) 20
20
UV low pressure lamps Genesis VHP12
160 W
Starter (120-180 W)
71 in
1.80 m
160 W 160 W 1508603-..
12637-..
f) 2
2
UV low pressure lamps Genesis VHP12 8 W
Starter S10 (5-65 W)
0.31 m 8 W 8 W / 0 W 1508604-..
10047-..
