GENERAL DESCRIPTION OF EQUIPMENT
D0716C-EN
GENERAL DESCRIPTION OF EQUIPMENT
GENERAL CHARACTERISTICS
The device is intended for storing flexible endoscopes in a controlled environment following disinfection and
drying the channels according to the relevant protocol for this type of product.
This objective is achieved:
• By a general cycle that is both stable and aerodynamic, controlled
over time using threshold information: differential pressure,
humidity, temperature control, ventilation rate.
• And by a principal cycle individual to each endoscope, called an
aeration/channel blowing cycle. This is a connection made by the
user when inserting each endoscope that provides a flow of air (4
l/min) during a pre-programmed duration for each endoscope
individually. The principal cycle is critical in ensuring the coherence
of the storage in relation to the manufacturer’s recommendations.

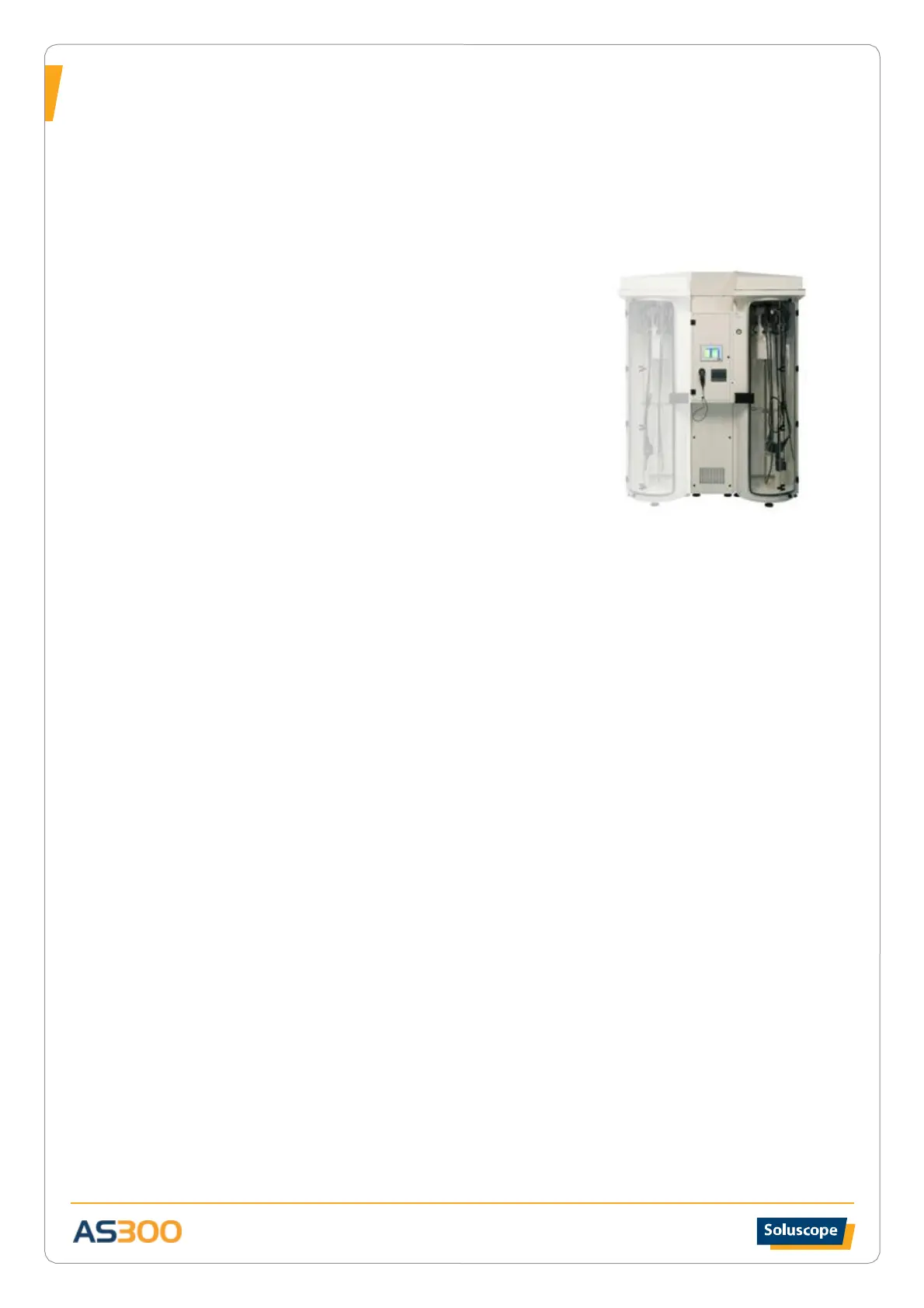

The cabinet comprises a monoblock aseptic unit, stainless steel inside and
metal exterior chamber with transparent doors including two compartments:
One technical front-opening compartment containing the technical components required for the functioning
of the device:
- Prefiltration filter (EU3/G3)
- Filtered air supply (EU5/G5)
- Principal ventilator motor
- Differential pressure switch (overpressure)
- Automatic regulation and control
- Touch screen console
- Printer
- Bar code scanner
- Aseptic unit/medical air connection
- Air pressure regulator
NB: The technical compartment can supply one or two storage modules (Option: AS300X2)
One or two controlled atmosphere units for storing endoscopes, comprising an easily accessible and
cleanable painted stainless-steel volume, including, per unit:
- Front-opening door 1/2 – 1/2
- Absolute filtration (H14)
- Differential pressure switch (filter clogging)
- Endoscope attachment system
(motorised and indexed carousel)
- 10 removable endoscope holders
- Medical air distributor
- 10 self-sealing air couplings
- 10 air pressure switches
- 10 solenoid valves
- Temperature/humidity sensor
AS300X2: The storage capacity can optionally be doubled (20 endoscopes) by adding a second storage module
on the other side of the technical compartment.
AS300 TR: The pass-through version has an additional opening in the storage compartment and allows
separation of the clean area from the grey area.
PRINCIPAL PHASES OF THE ASEPTIC UNIT
1. Insertion of endoscope
2. Launch of automatic blowing cycle
3. Injection of medical air and unit management of aeration cycle per endoscope
4. Removal of endoscope
5. Routine operation on electrical compartment
6. Maintenance operation on filter compartment
