Ventilation
The dehumidier can activate a normally closed damper
to bring in outdoor air through a fresh air intake duct. This
feature can not be used when a Y6456 has been installed
in a Remote Control application, and is not recommended
for two-zone installations.
Required Components
X4152 Ventilation Damper – 6 in. Normally Closed (NC)
6" Insulated Duct for Fresh Air Intake Duct
22N03 (24 VAC, 40 VA) 24 VAC Transformer for
Ventilation Damper
Intake Hood
18-22 AWG Wire
Optional Component
58N66 Outdoor Temperature Sensor
INSTALLATION & WIRING
VENT-AUTO & VENT-TIMED
The dehumidier can ventilate in four modes.
Vent-Timed: Ventilation occurs based only on time
setting; no temperature restrictions.
Vent-Auto-B: Ventilation prevented when outdoor
temperature is below 0°F and above
100°F. Between 0°F – 20°F ventilation is
only allowed during a HVAC heat call.
Vent-Auto-C: Ventilation prevented when outdoor
temperature is below 0°F and above
100°F.
Vent-Auto-D: Ventilation prevented when outdoor
temperature is below 0°F and above 90°F.
Between 0°F – 40°F ventilation is only
allowed during a HVAC heat call.
Vent-Auto-B, -C, -D modes apply outdoor temperature
limits and require the 58N66 Outdoor Temperature
Sensor to be installed.
BALANCING
DAMPERS
NORMALLY CLOSED
VENT DAMPER
AIR IS PULLED
FROM OUTSIDE
HVAC/FURNACE
6 ft
MIN
NORMALLY CLOSED
VENT DAMPER
AIR IS PULLED
FROM OUTSIDE
HVAC/FURNACE
6 ft
MIN
+-AB ODT VENT DEH
Sensor DampersRemote
FLOAT
Switch
DH DH
Gh Rf Cf Gs YW
HVAC EQUIP.
HVAC
EQUIPMENT
THERMOSTAT
24 VAC
(10 VA min)
TRANSFORMER
6" NORMALLY
CLOSED DAMPER
OPTIONAL OUTDOOR
TEMPERATURE SENSOR
(Model 58N66)
Y
W
C
R
G
Y
W
G
C
R
90-1897
90-1898
90-1861

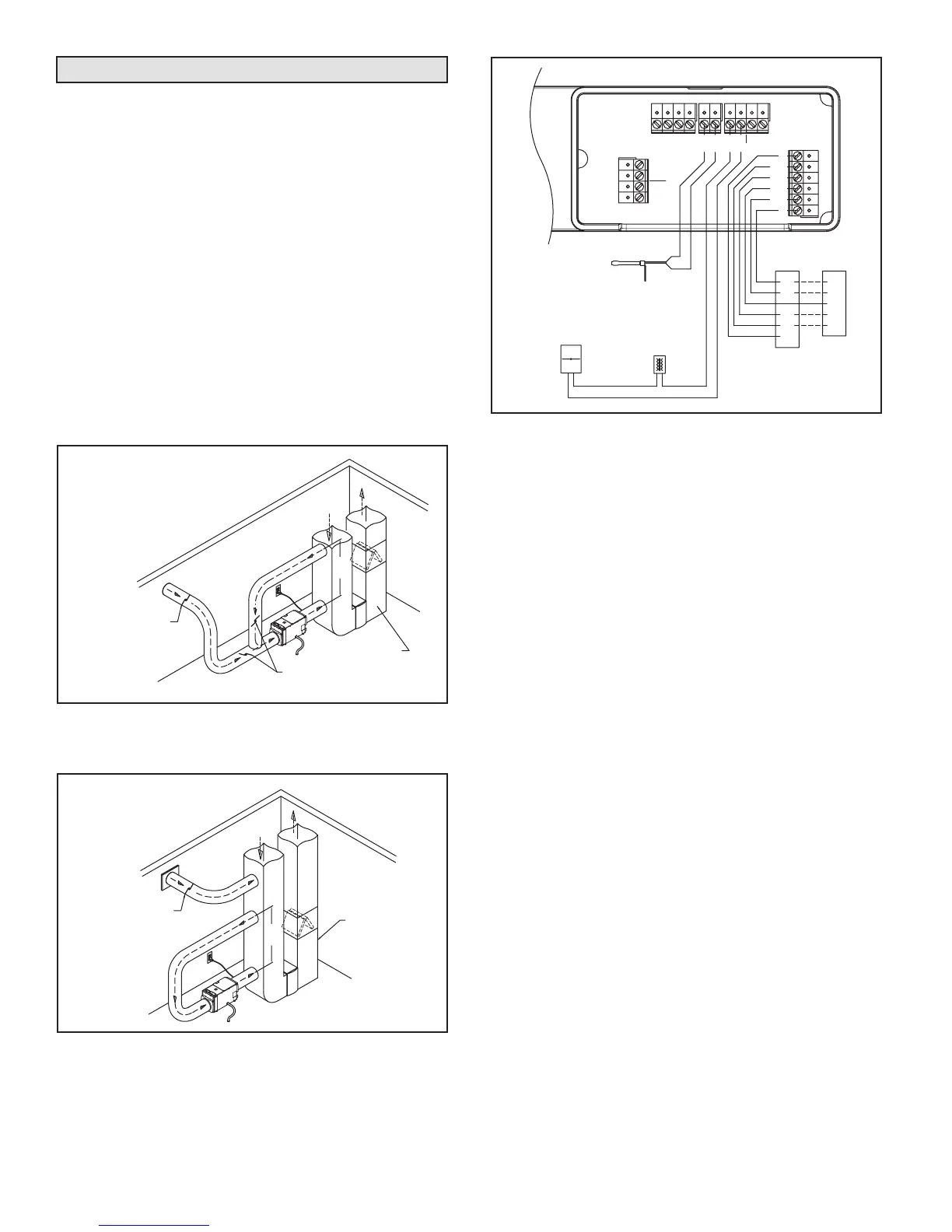

Figure 24. Single Zone, On-Board Control
Ventilation Installation
Figure 26. Ventilation Wiring
Figure 25. Single Zone, External Control
Ventilation Installation
