Solutions HCWHD3-070 - Service Parts (Models HCWHD3-070;095)

No. Part Description Part No.
1 Filter, 10" x 12" x 1" EZK Y6457
2 Internal Control Board, Deh Y6458
3 User Interface Assembly, Deh Y6459
4 Wiring Access Door, Deh Y6460
5 Hole Cover, UI Ctrl, Deh Y6461
6 Door, Filter Access, Deh Y6462
7 Outlet Duct Panel, Deh Y6463
8 Backow Damper, 10", Deh Y6464
9 Inlet Duct Panel, Deh Y6465
10 Cover, Outlet, Deh Y6466
11
Fan, 70pt Deh Y6467
Fan, 95pt Deh Y6468
No. Part Description Part No.
12 Wire Harness, Power, Deh Y6469
13 Sensor, Low Temperature, Deh Y6470
14 Sensor, High Temperature, Deh Y6471
15 Leveling Foot, Deh Y6472
16 Capacitor, 45MFD, 370VAC Y6473
17
Capacitor, 8MFD, 450VAC, 70pt Deh Y6474
Capacitor, 12MFD, 450VAC, 95pt Deh Y6475
18 RH Sensor, Deh Y6476
19
Compressor Overload Switch, 70pt Deh Y7125
Compressor Overload Switch, 95pt Deh Y7126
Not Shown Outdoor Temperature Sensor 58N66
90-1906

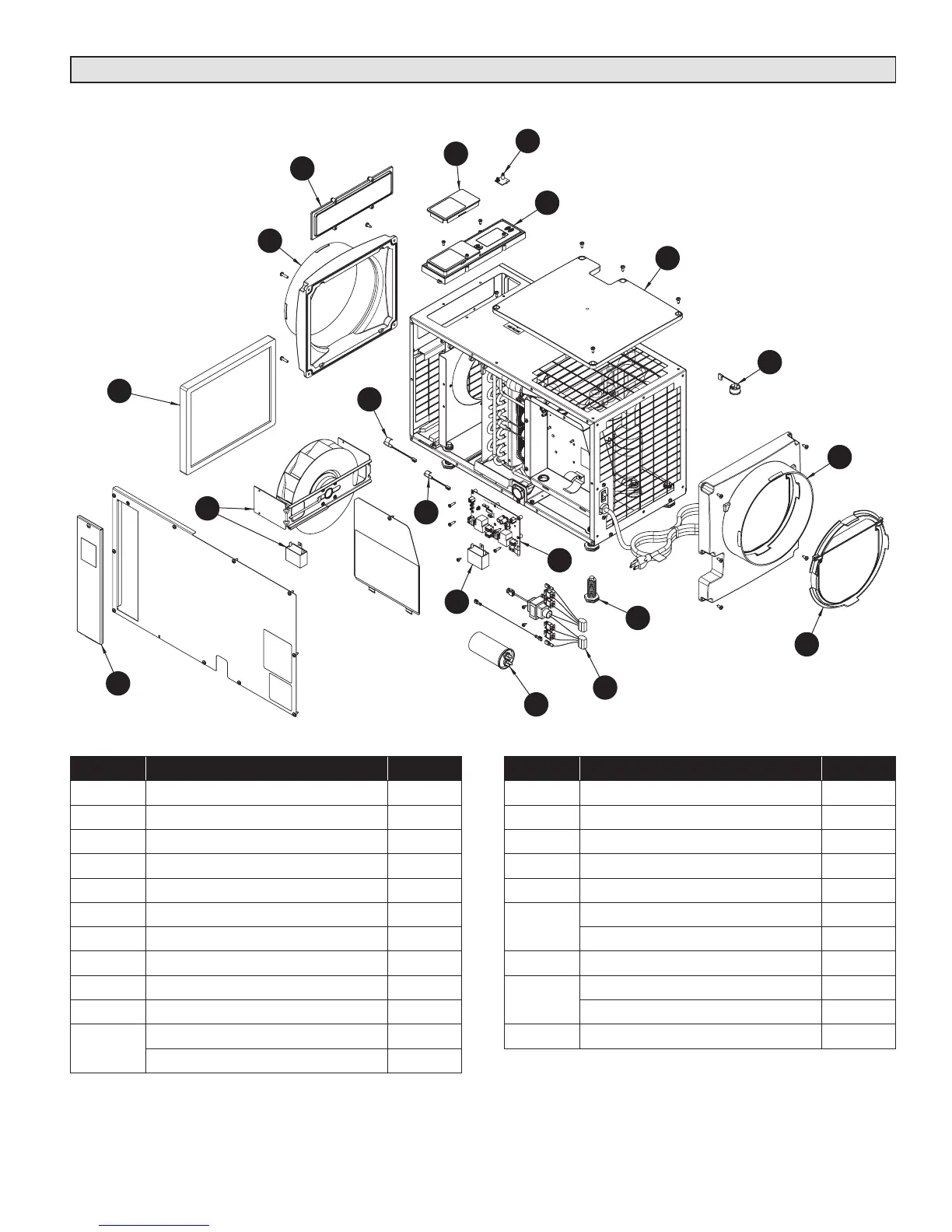

Service Parts
HCWHD3-070 and HCWHD3-095
