Solutions HCWHD3-070 - Service Parts (Model HCWHD3-130)

10011191 8.18
B2206661C

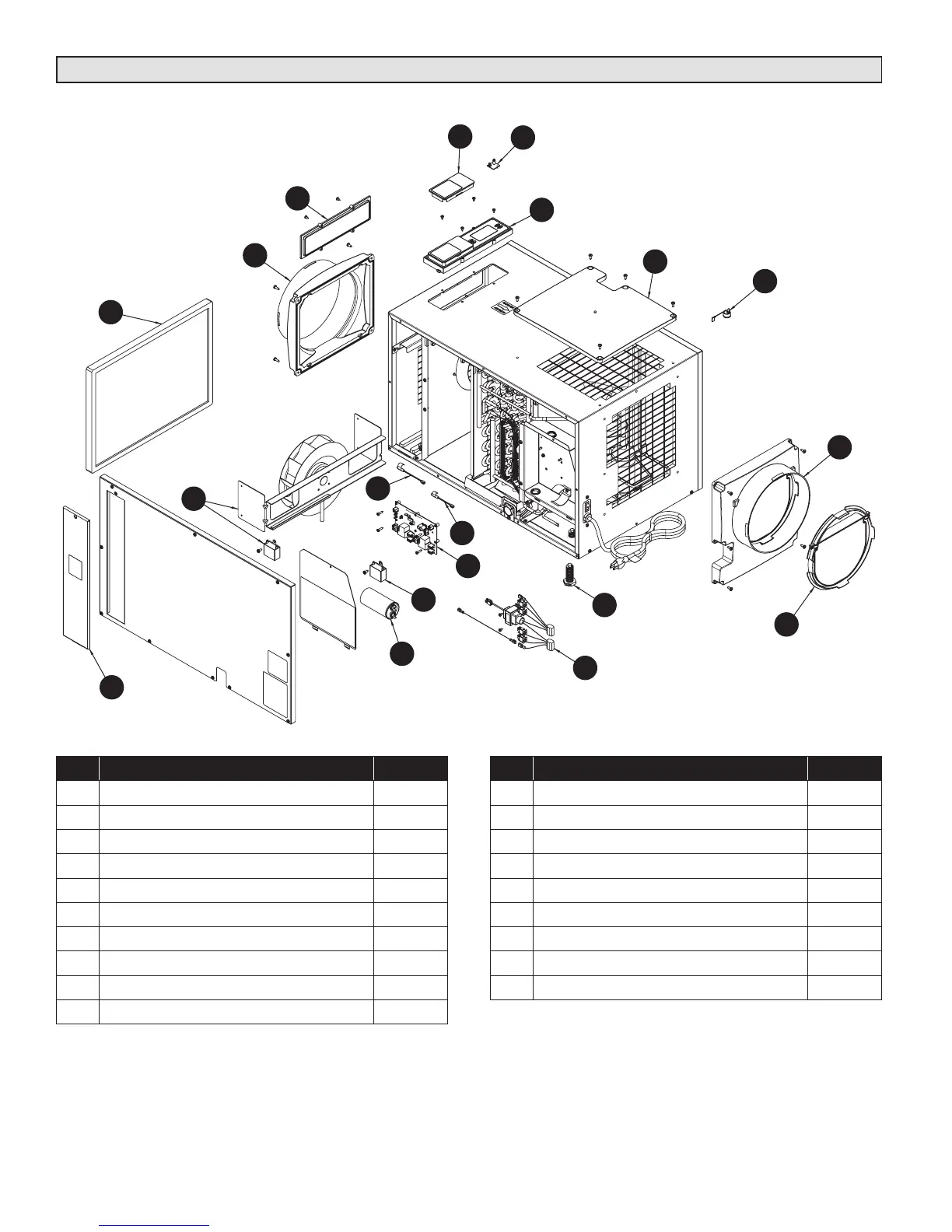

Service Parts
HCWHD3-130
4
18
3
10
19
7
8
12
15
14
2
17
16
6
11
1
9
13
5
No. Part Description Part No.
1 Filter, 14” x 19” x 1” EZK Y7120
2 Internal Control Board, Deh Y6458
3 User Interface Assembly, Deh Y6459
4 Wiring Access Door, Deh Y6460
5 Hole Cover, UI Ctrl, Deh Y6461
6 Door, Filter Access, Deh Y7121
7 Outlet Duct Panel, Deh Y6463
8 Backow Damper, 10”, Deh Y6464
9 Inlet Duct Panel, Deh Y6465
10 Cover, Outlet, Deh Y6466
No. Part Description Part No.
11 Fan, 130pt Deh, with 10MFD Capacitor Y7122
12 Wire Harness, Power, Deh Y6469
13 Sensor, Low Temperature, Deh Y6470
14 Sensor, High Temperature, Deh Y6471
15 Leveling Foot, Deh Y6472
16 Capacitor, 50MFD, 370VAC Y7123
17 Capacitor, 10MFD, 250VAC Y7124
18 RH Sensor, Deh Y6476
19 Compressor Overload Switch Y7127
